Jističe

ABB S203M-C16

SKU: 28012

Skladem

Vyberte stav

Used

Bez DPH: €25,00 (1 dostupné)

včetně DPH: €30,25

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informace o záruce

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 6 měsíce

Použité 3 měsíce

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

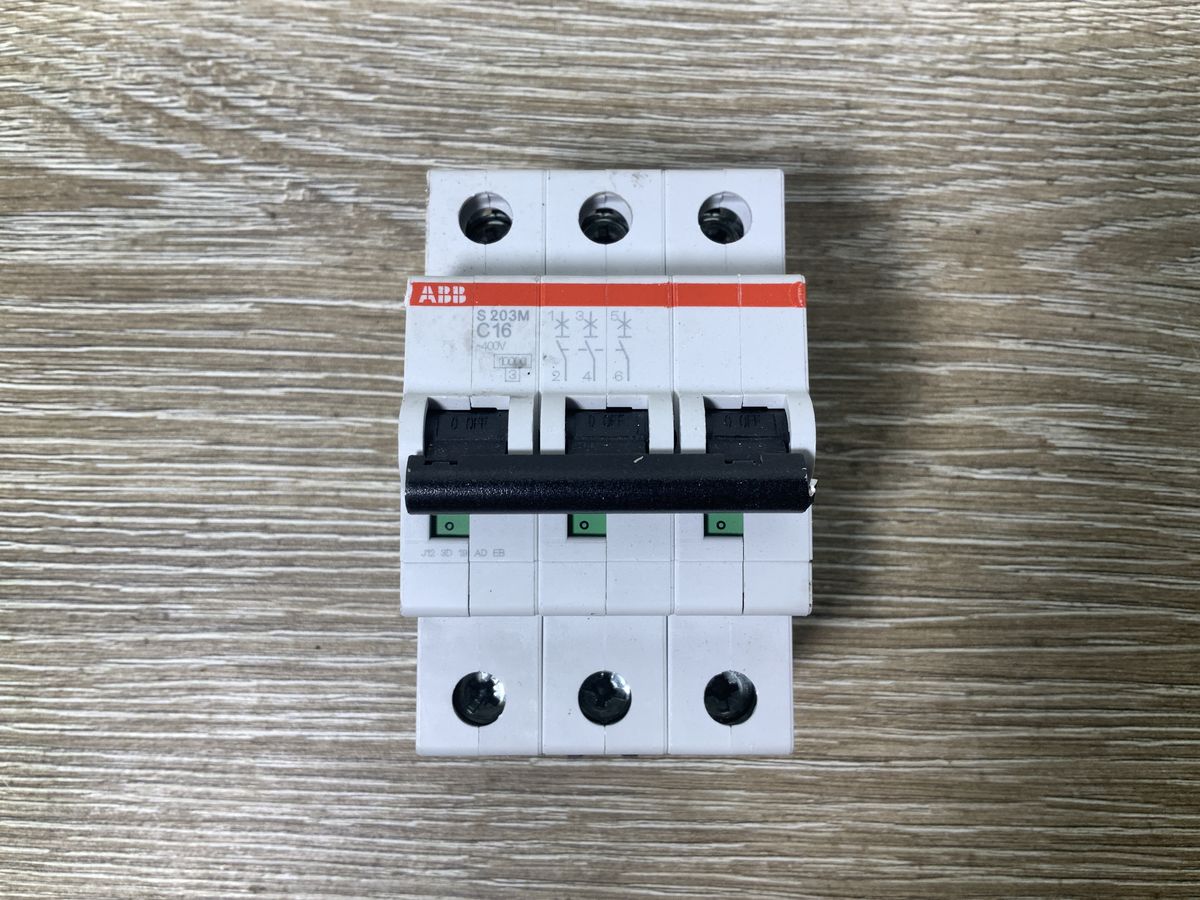

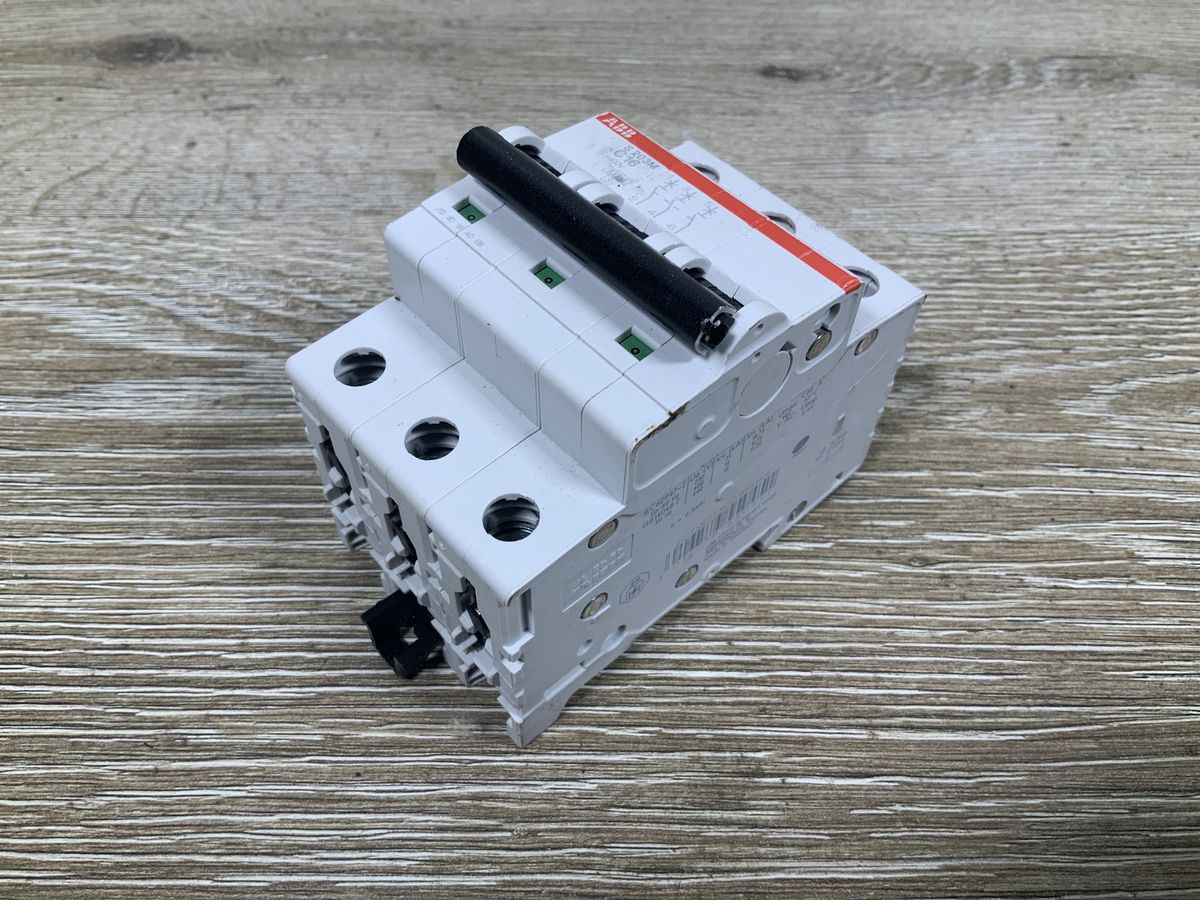

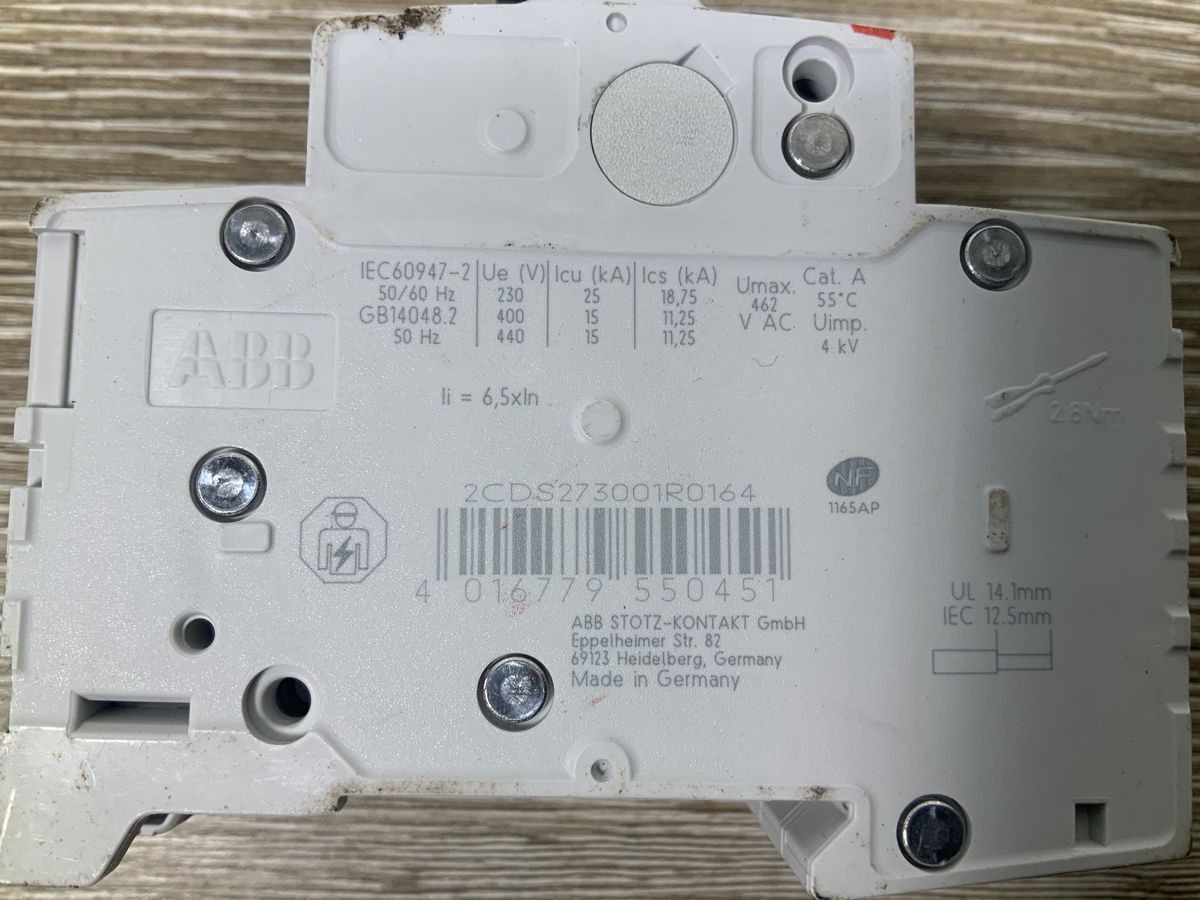

The ABB S203M-C16 is a 3-pole miniature circuit breaker (MCB) from the System pro M compact S200M series. It features a 16 A rated current with C-curve tripping characteristic and up to 15 kA breaking capacity at 400 V AC. Designed for standard 35 mm DIN rail mounting, it provides reliable overload and short-circuit protection in commercial and industrial distribution systems.

Specifications – S203M-C16

Parameter	Specification
Number of Poles	3P
Rated Current (In)	16 A
Tripping Curve	C-curve
Rated Voltage (Ue)	230 / 400 / 440 V AC
Breaking Capacity (Icu)	15 kA @ 400V
Impulse Withstand Voltage (Uimp)	4 kV
Mounting Type	DIN Rail
EAN Barcode	4016779550451
