Průtokoměr

Brooks Instrument 8-1110-10

SKU: 3001

Skladem

Použité
Získáno z pracovního prostředí

Bez DPH: €360,00 (1 dostupné)

včetně DPH: €435,60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 3 měsíce

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Specifications – 8-1110-10 Series Flowmeter

Parameter	Specification
Accuracy	±2% of full scale
Repeatability	±0.5% of full scale
Flow Range	m³ₙ/h (N₂, air at 20 °C)
Operating Temperature (Calibration)	20 °C
Inlet Pressure (Pe)	2.513 bar
Operating Pressure Range	2–14 bar

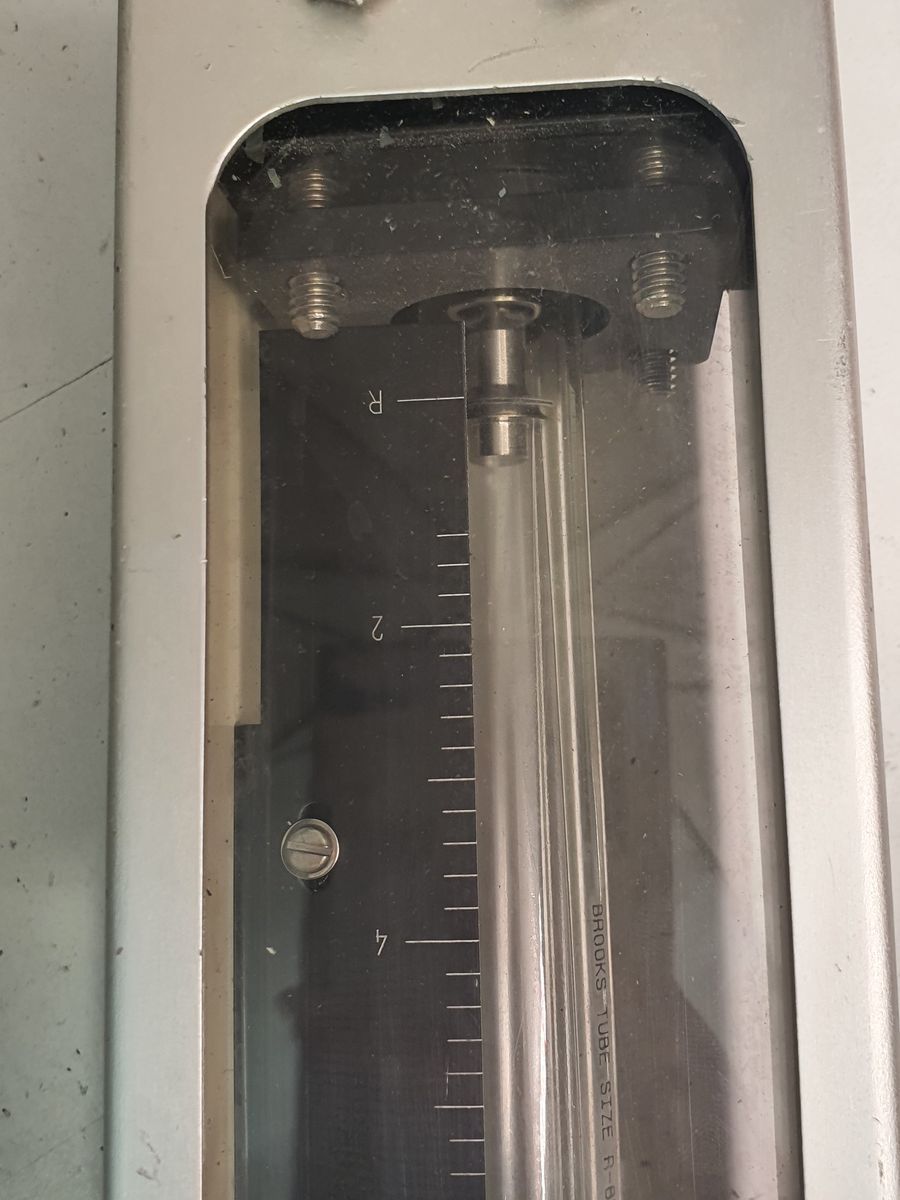

Measuring Tube	Glass tube with precision bore
Construction	Metal frame with replaceable tube and float
Connection Options	Threaded or flanged, rotatable
Mounting	Vertical or horizontal (depending on configuration)
