Brooks Instrument FC 8744

SKU: 7013

Skladem

Použité
Získáno z pracovního prostředí

Bez DPH: €75,00 (1 dostupné)

včetně DPH: €90,75

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 6 měsíce

Použité 3 měsíce

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

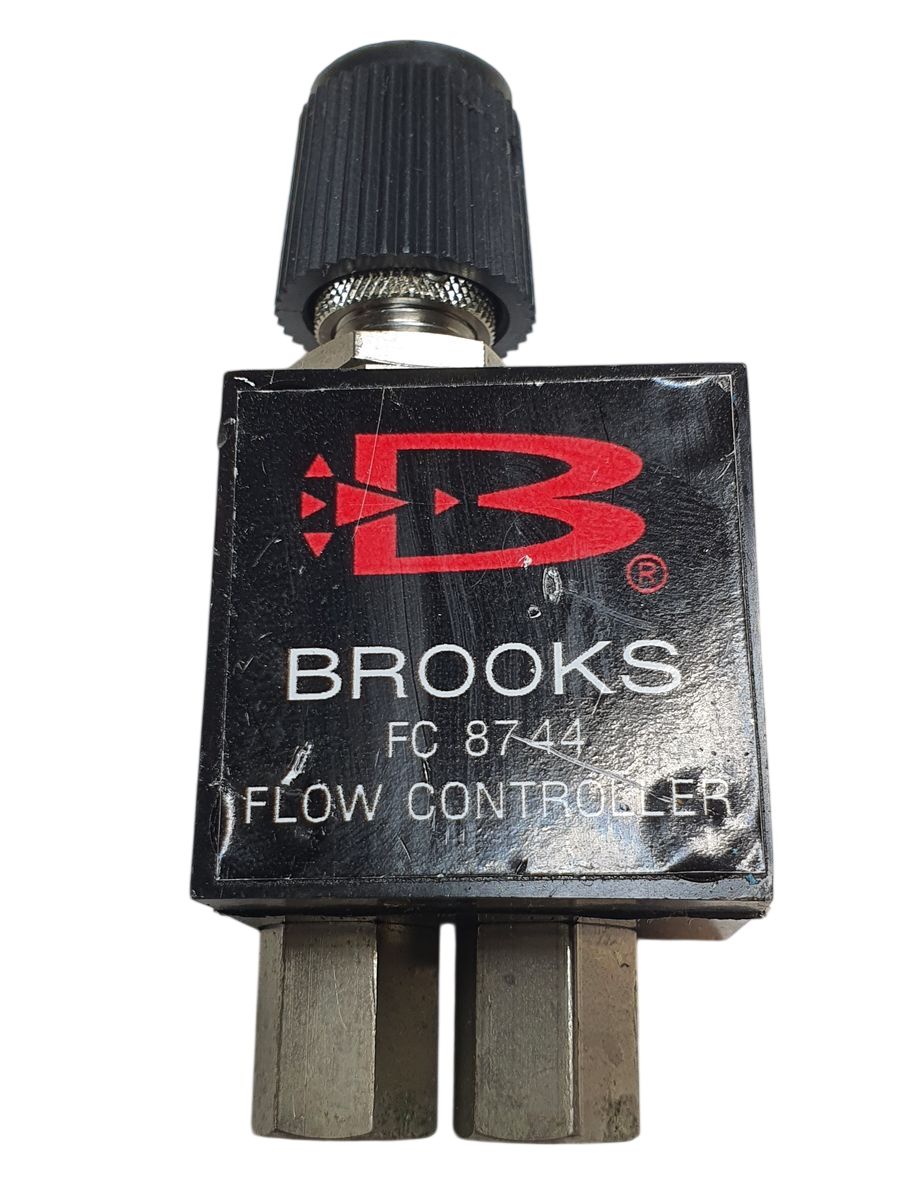

Brooks Instrument FC 8744 Manual Flow Controller

Parameter	Specification
Product Type	Manual Flow Controller
Differentiator	Available as standalone or integrally mounted to flow meter
Application	Low flow measurement and control
Suitable Media	Air, Water, compatible liquids
Flow Range – Air (Full Scale)	0.1 – 200 scfh
	0.04 – 100 lpm
Flow Range – Water (Full Scale)	10 – 240 ccm
	0.2 – 40 gph
Materials of Construction	Stainless Steel, Brass, Aluminum
Accuracy	Refer to model-specific data sheet
Maximum Operating Temperature	178 °C (350 °F)
Maximum Operating Pressure	Refer to maximum pressure ratings table in data sheet
O-Ring Materials	Viton®, Buna-N, Kalrez®, EPR, Kalrez®/Teflon®
Process Connections	1/8" – 1/4" F-NPT
	1/8" – 1/4" Tube Compression
	1/4" ID Hose
	3/4" F-NPT
	Integral connection
