Manometr

Dwyer 2000-25MMC

SKU: 6035

Skladem

Vyberte stav

Used

Bez DPH: €30,00 (1 dostupné)

včetně DPH: €36,30

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informace o záruce

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 3 měsíce

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

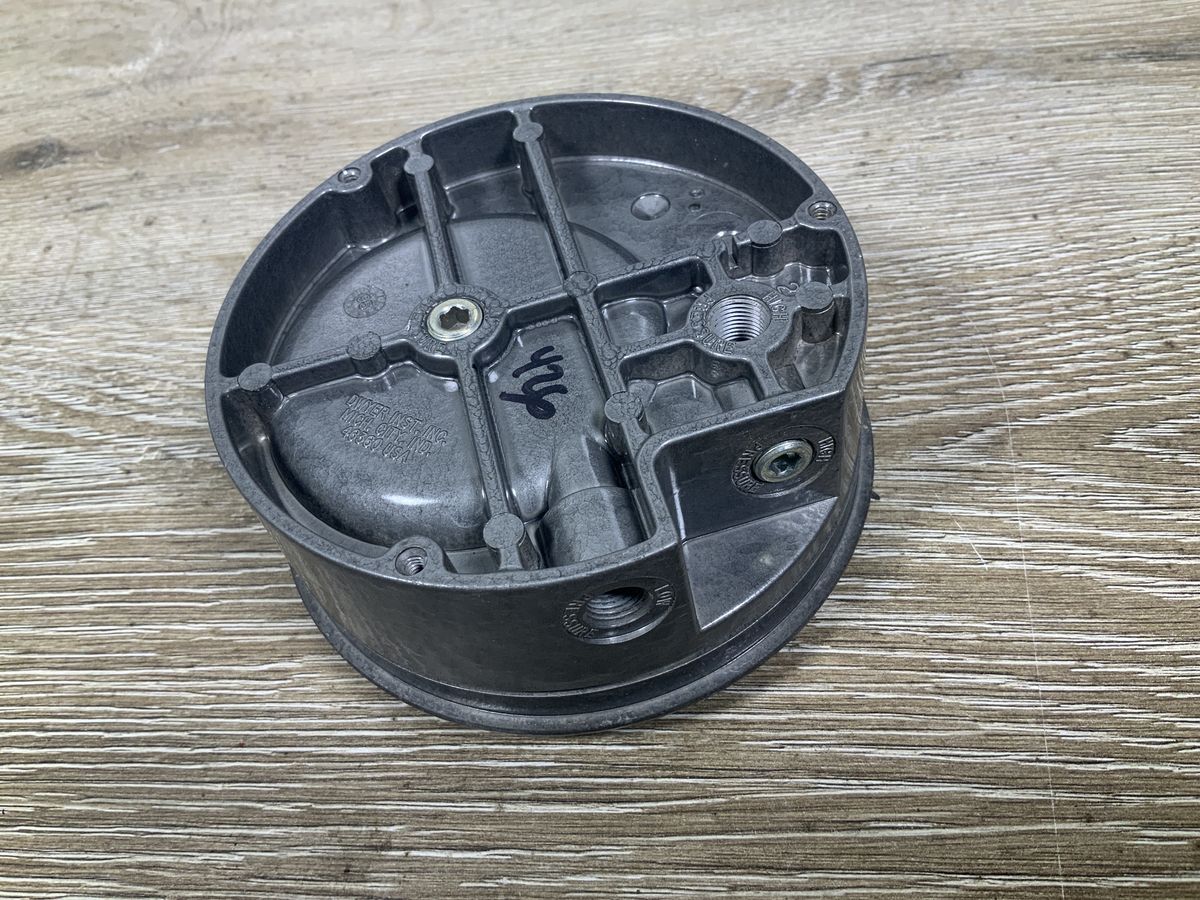

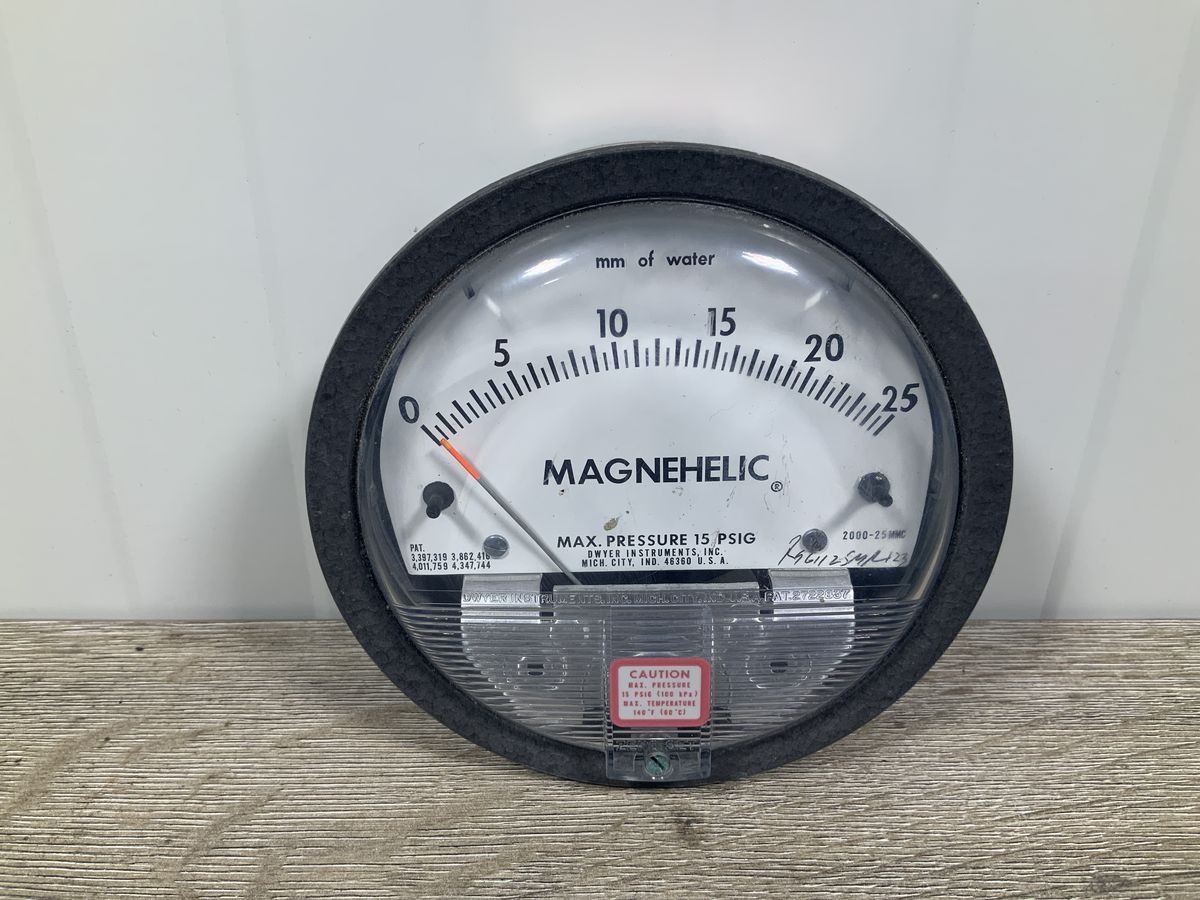

Dwyer Magnehelic 2000 series differential pressure gauge designed to measure positive, negative, or differential pressure of air and non-corrosive gases. Features a 4-inch dial with a measurement scale of 0 to 25 mm of water column and a rugged die-cast aluminum enclosure. Equipped with dual 1/8-inch NPT high and low pressure ports on the side and rear.

Specifications – 2000-25MMC

Parameter	Specification
Pressure Range	0 - 25 mm of water

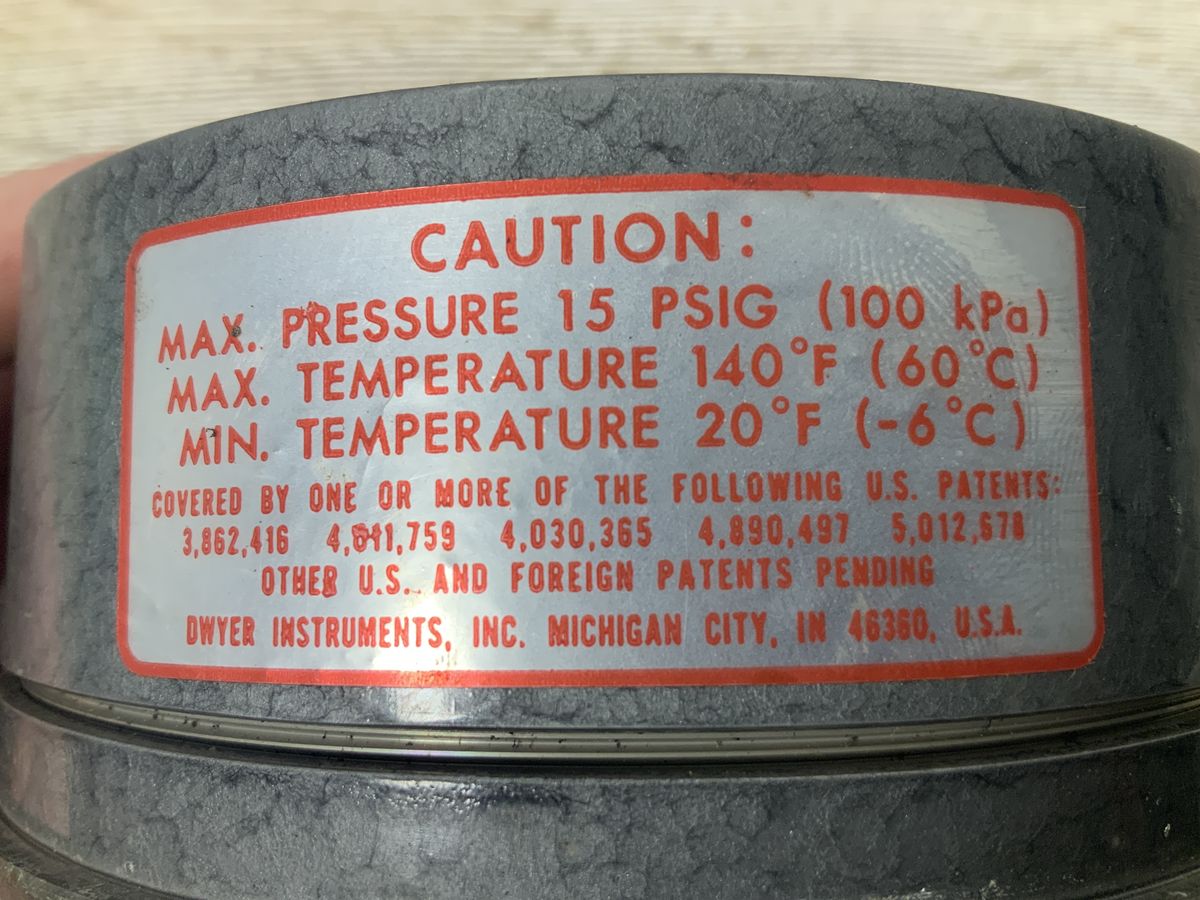

Max. Pressure	15 PSIG (100 kPa)
Max. Temperature	140 °F (60 °C)
Min. Temperature	20 °F (-6 °C)
Process Connection	1/8" NPT Female
