Manometr

Gommer BV Pressure Gauge 0-4 Bar

SKU: 6001

Skladem

Použité
Získáno z pracovního prostředí

Bez DPH: €100,00 (1 dostupné)

včetně DPH: €121,00

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 3 měsíce

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

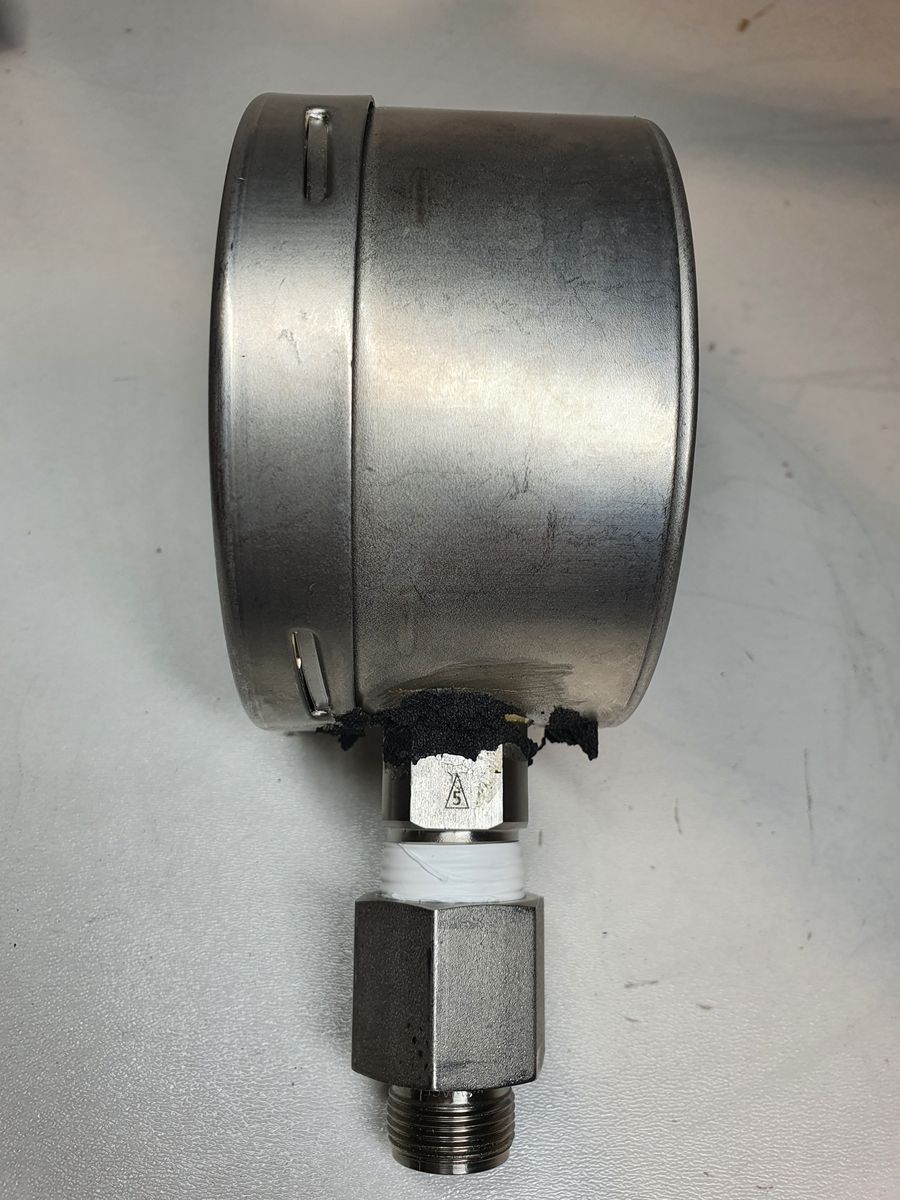

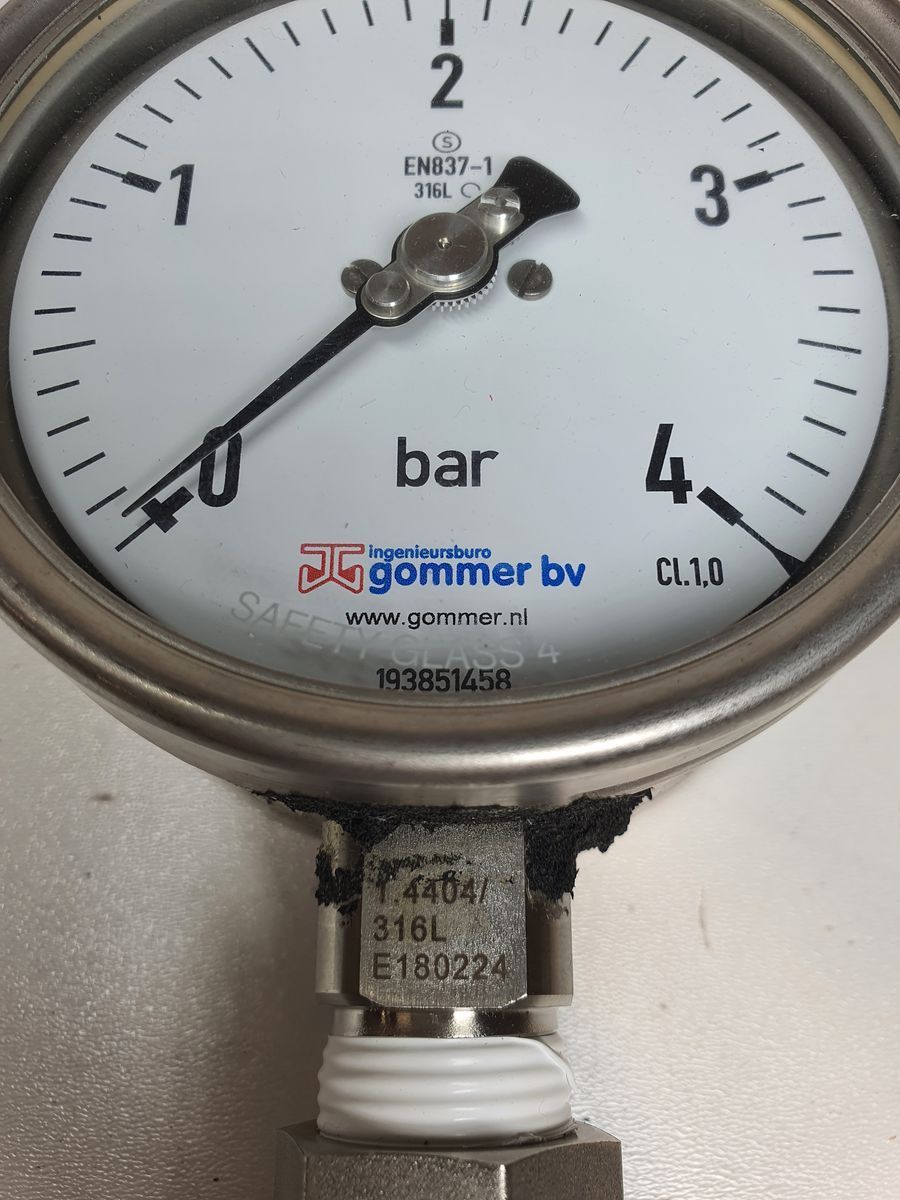

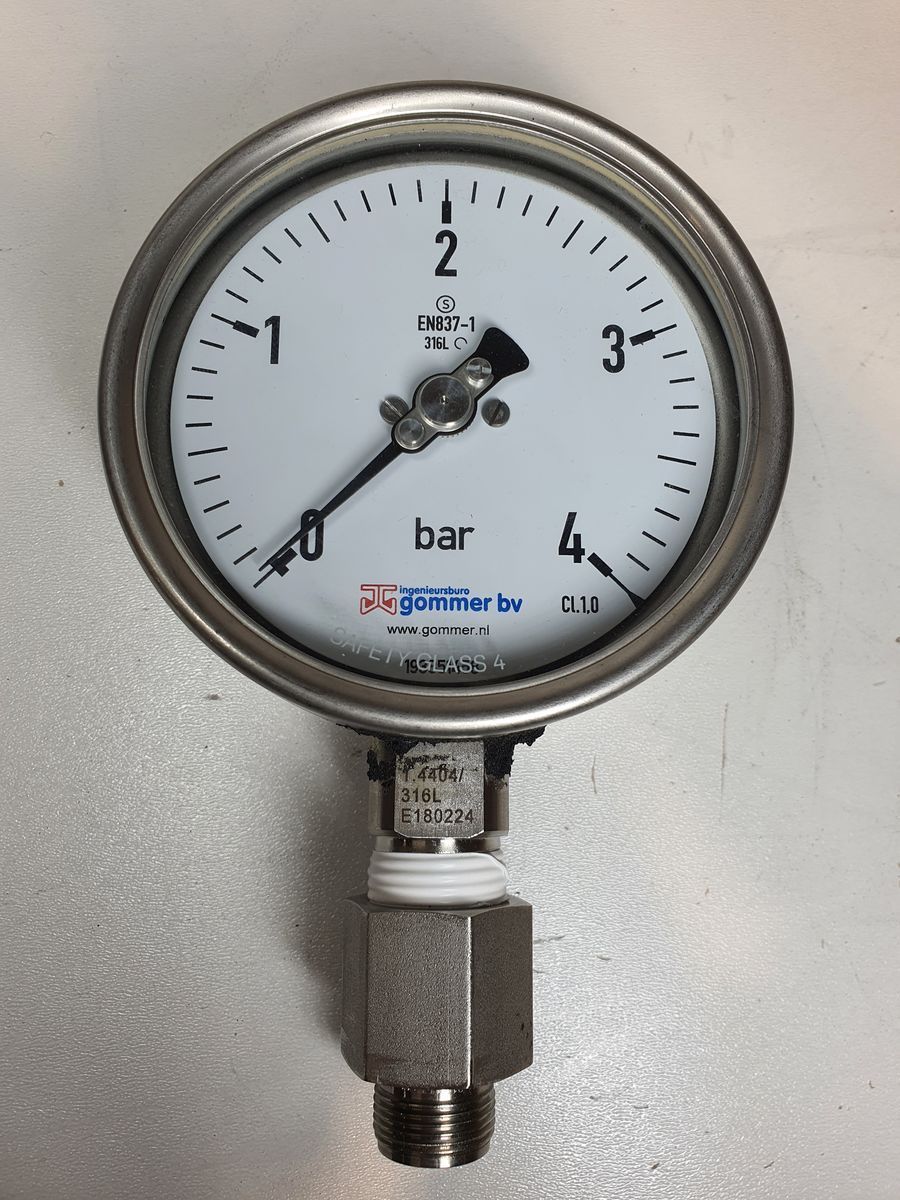

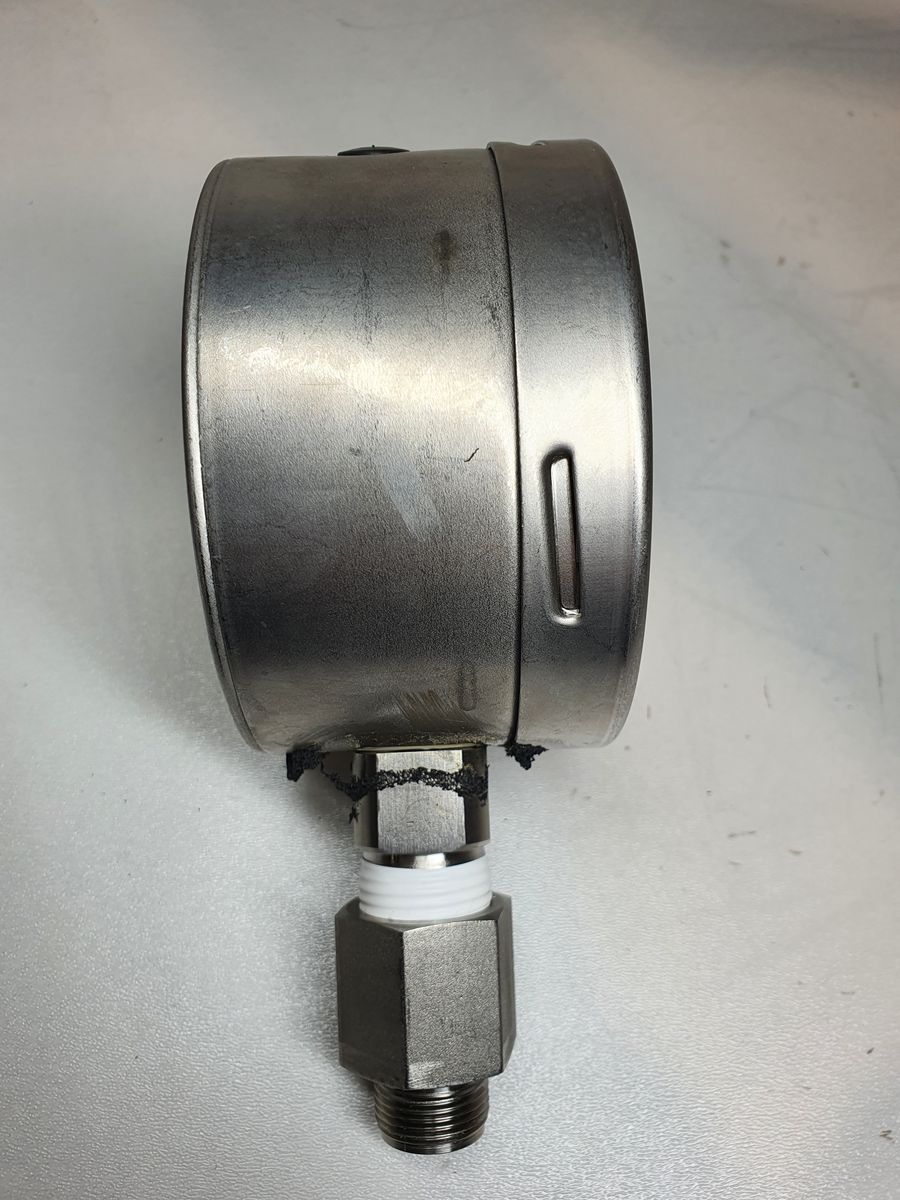

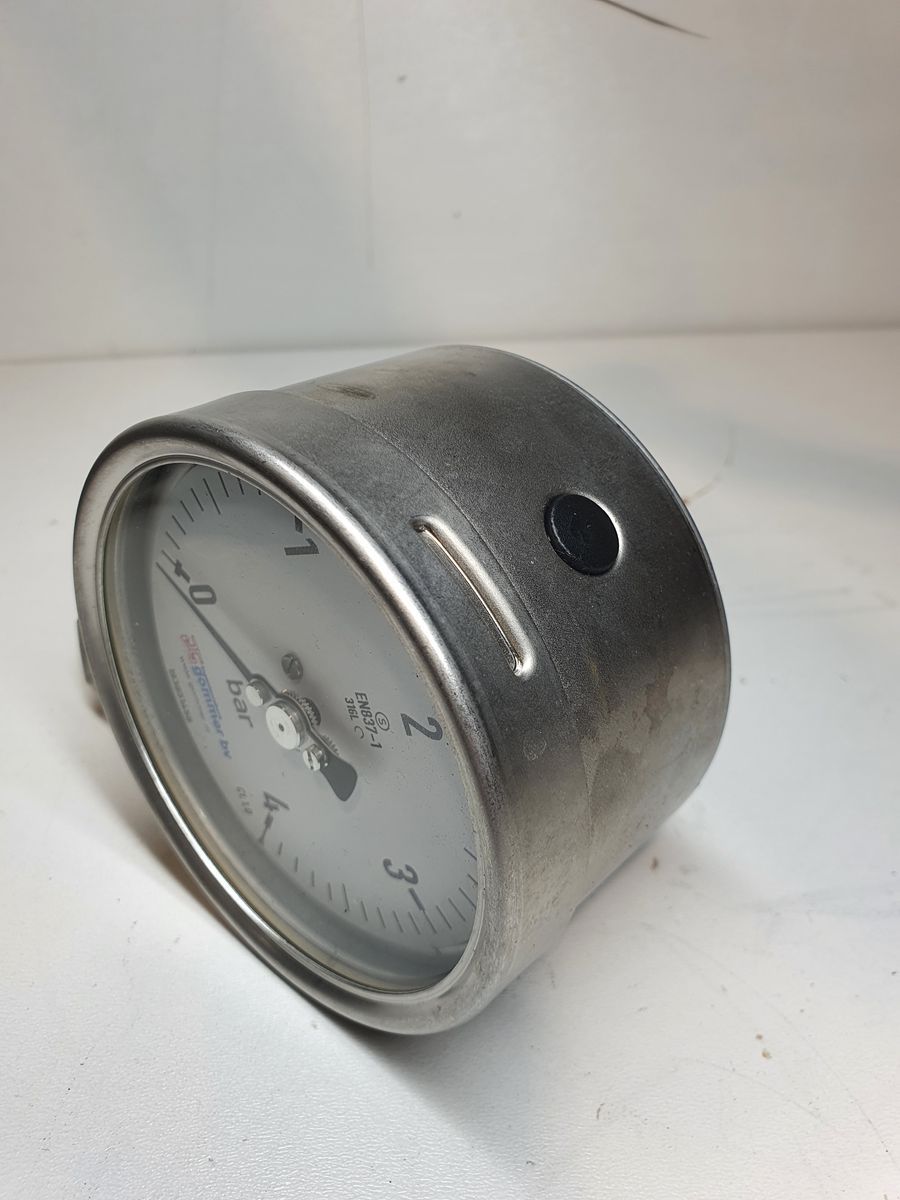

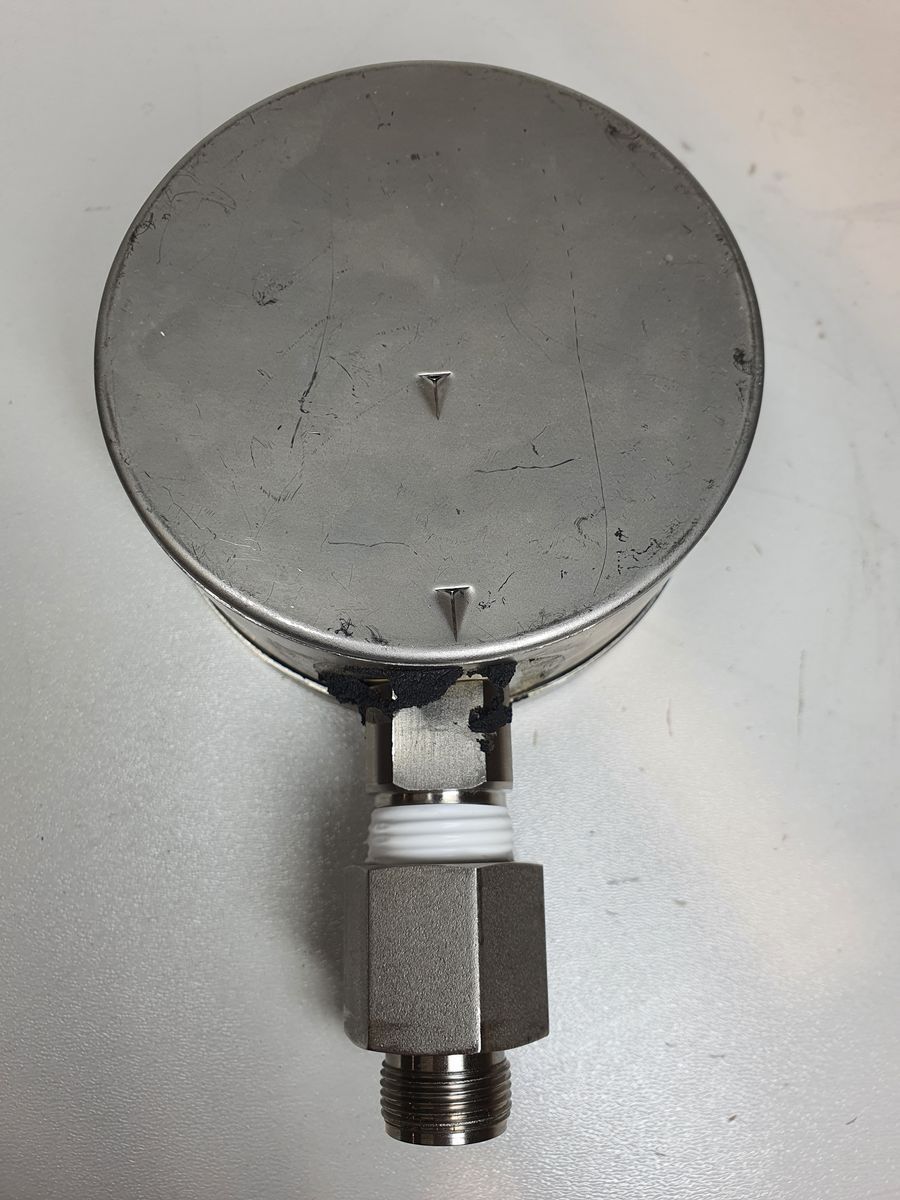

Gommer BV drukmeter model E180224

Parameter	Specification
Model	Gommer BV E180224
Standard	EN837‑1
Nominal Size (Dial Diameter)	100 mm
Measuring Range	0–4 bar
Accuracy Class	1.0 (±1% of full scale)
Wetted Parts Material	316L stainless steel (1.4404)
Housing	Stainless steel, robust industrial design
Window	Laminated safety glass (Type 4)
Connection	Bottom mount, threaded, typically G1/2B
Pressure Element	Bourdon tube (stainless steel)
Ambient Temperature Range	–20 °C to +60 °C (typical)
Medium Temperature Range	Refer to manufacturer; application dependent
Protection	Varies by design; optional safety features available
Mounting	Bottom threaded connection
