Honeywell 12CX200
SKU: 7003
Skladem
DODÁNÍ 24/7 MOŽNÉ
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

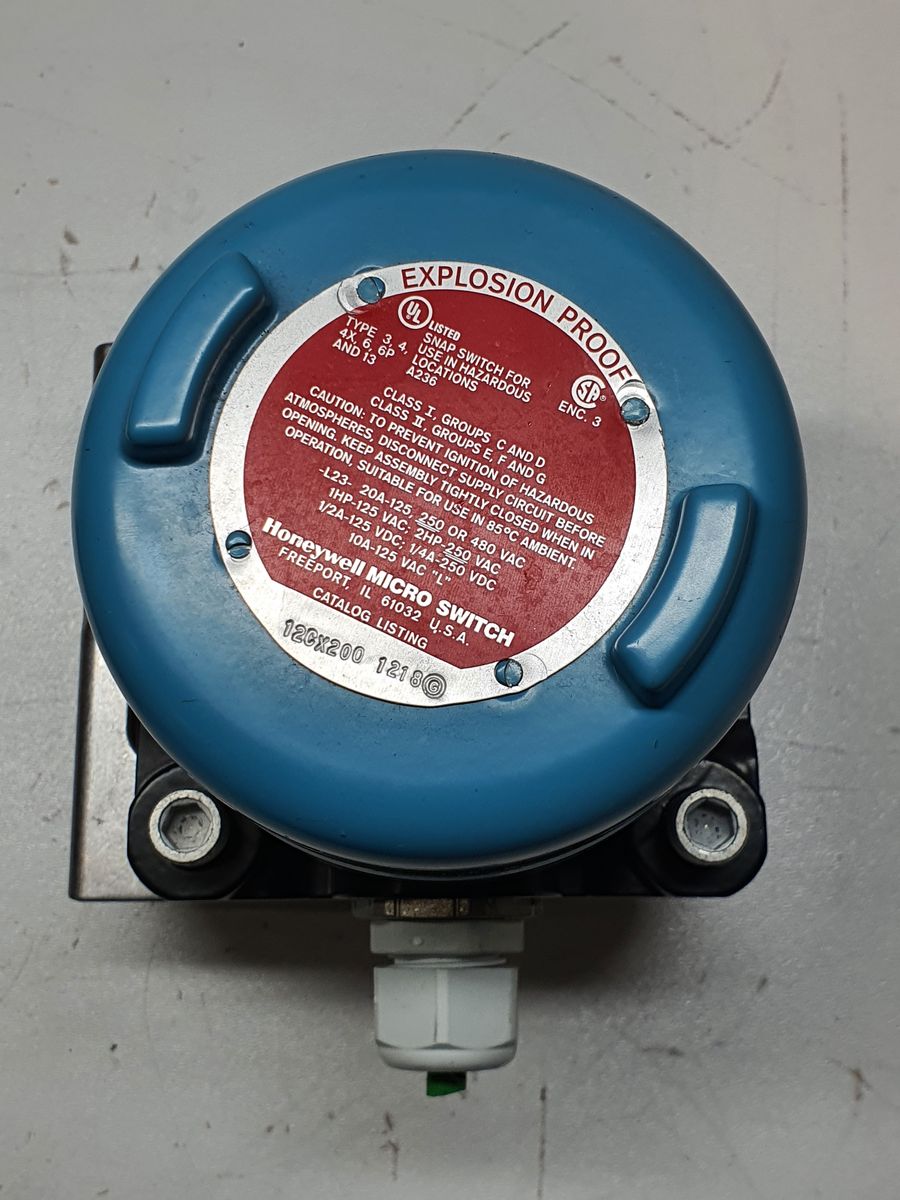

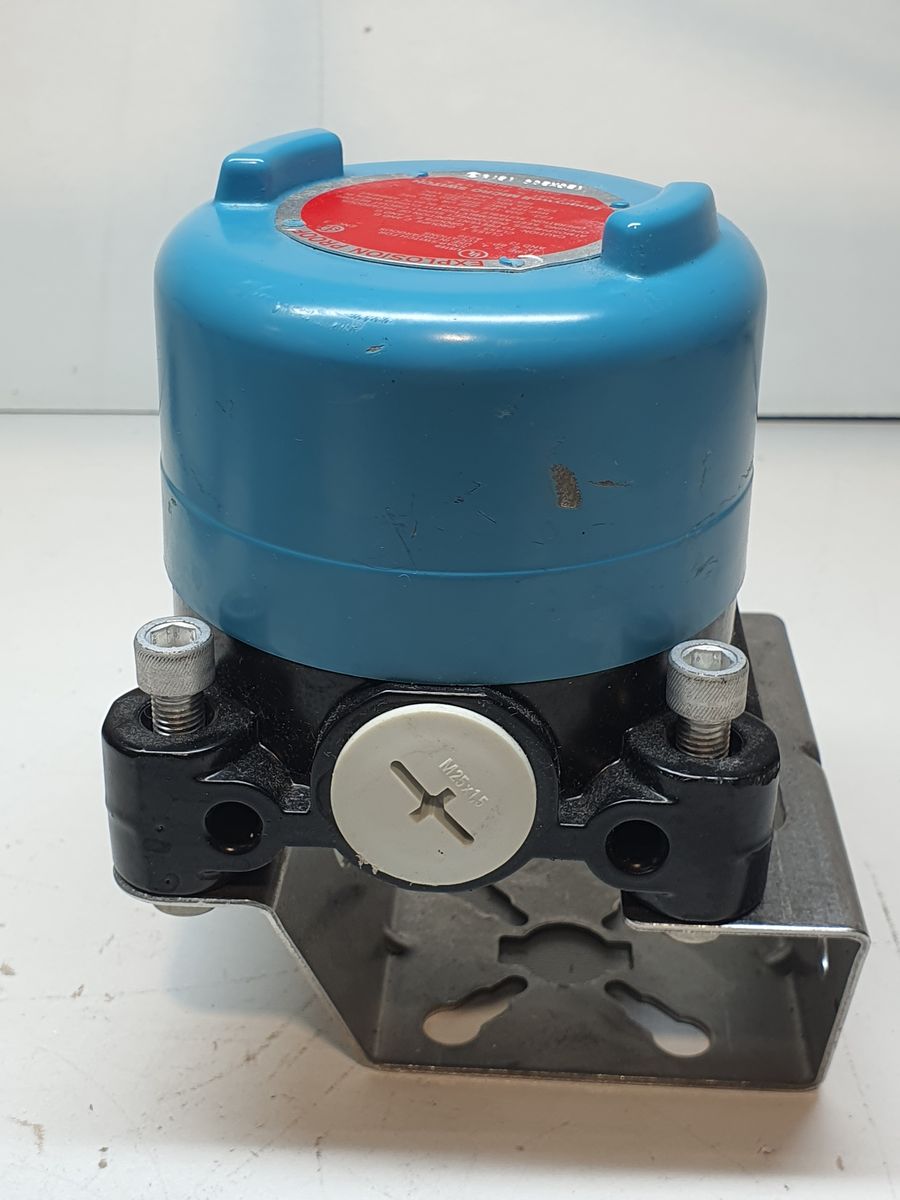

Honeywell 12CX200 IP66 Momentary Action Limit Switch, Rotary Lever, Aluminum, NC, NO, 480V
Overview
CX hazardous area switches are weatherproof, water-tight, dust-tight, highly reliable and rugged switches often used in control valves, petrochemical, conveyors, grain elevators, and material handling.
Product Specifications
Product Attribute |
Attribute Value |
|---|---|
| Actuator Type | No Actuator |
| Brand | HONEYWELL |
| Contact Form | 1 CO |
| Current Rating | 20 A |
| Head Type | Side Rotary Head |
| IP Rating | IP66 |
| Manufacturer Part Number | 12CX200 |
| Mounting Hole Size | 8.5 mm |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 1.25 N |
| Operation | Side-Actuated |
| Series | CX |
| Special Features | Explosion-Proof |
| Standards | UL CSA |
| Temperature Rating | -25 to +85 °C °C |
| Termination | screw |
| Type | Limit |
| Voltage Rating | 250 V |
×
![]()
