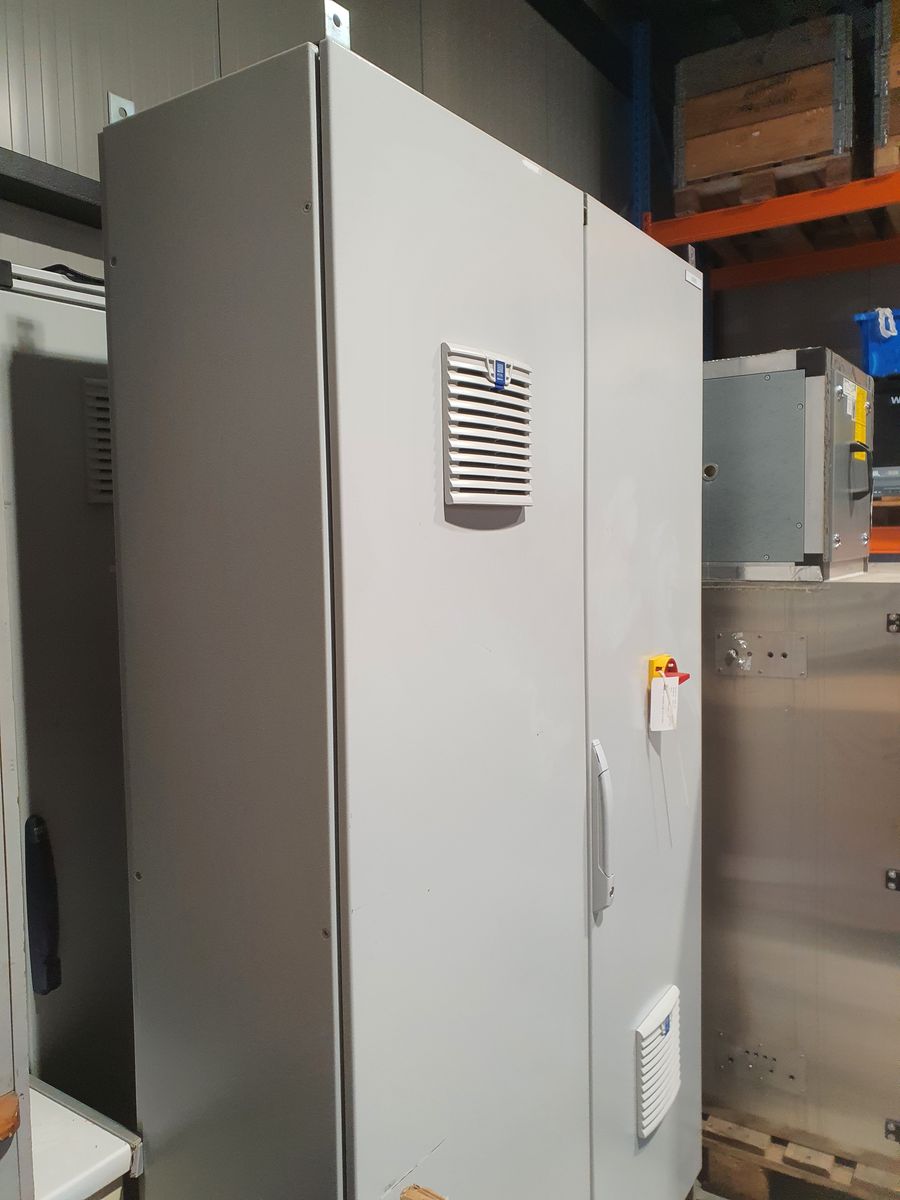

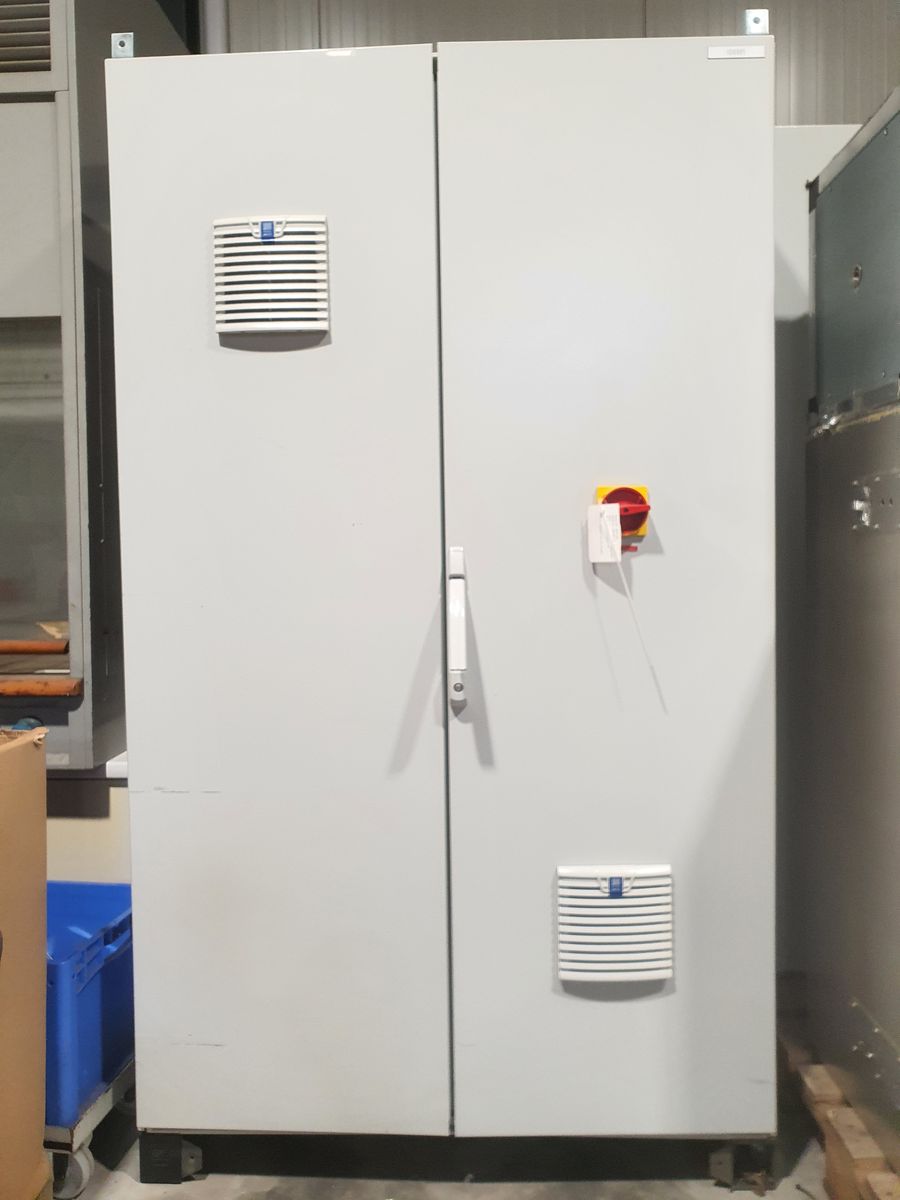

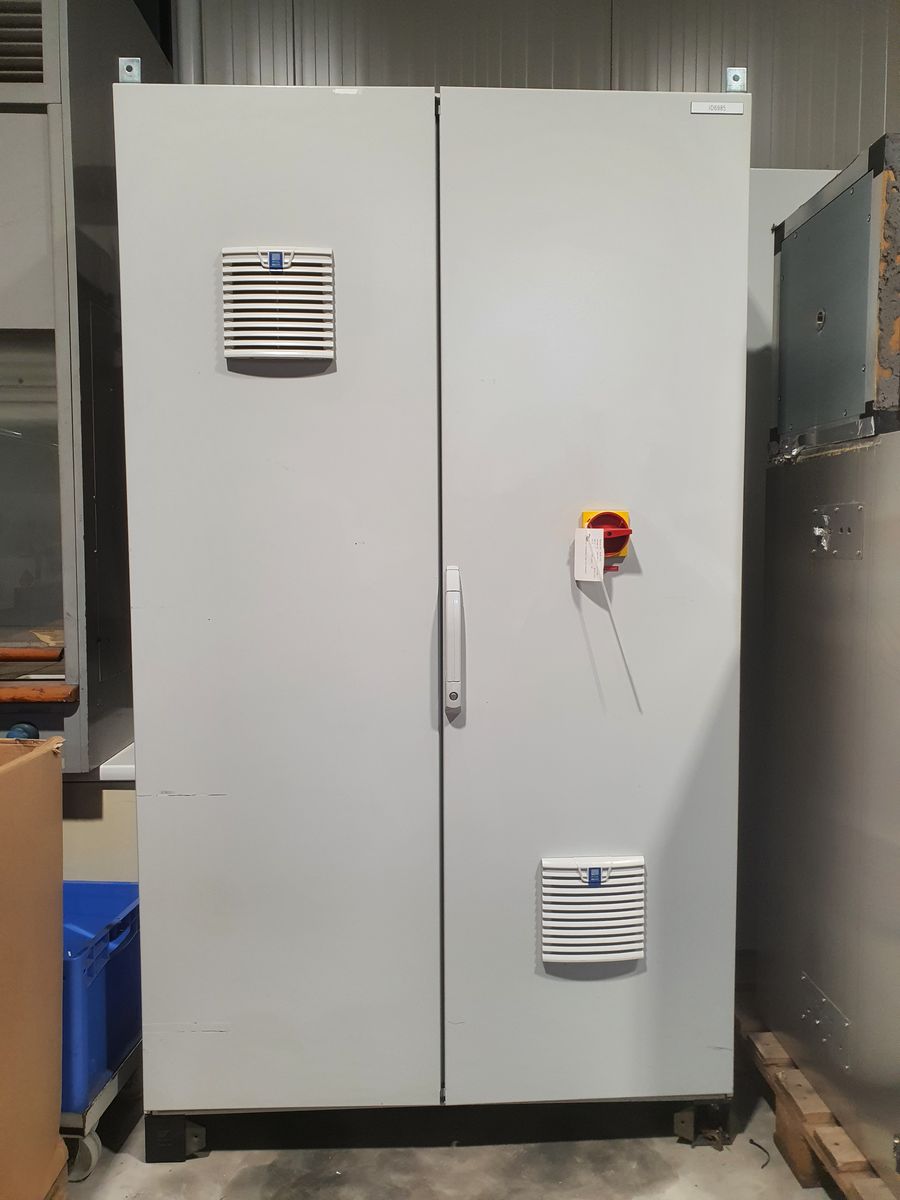

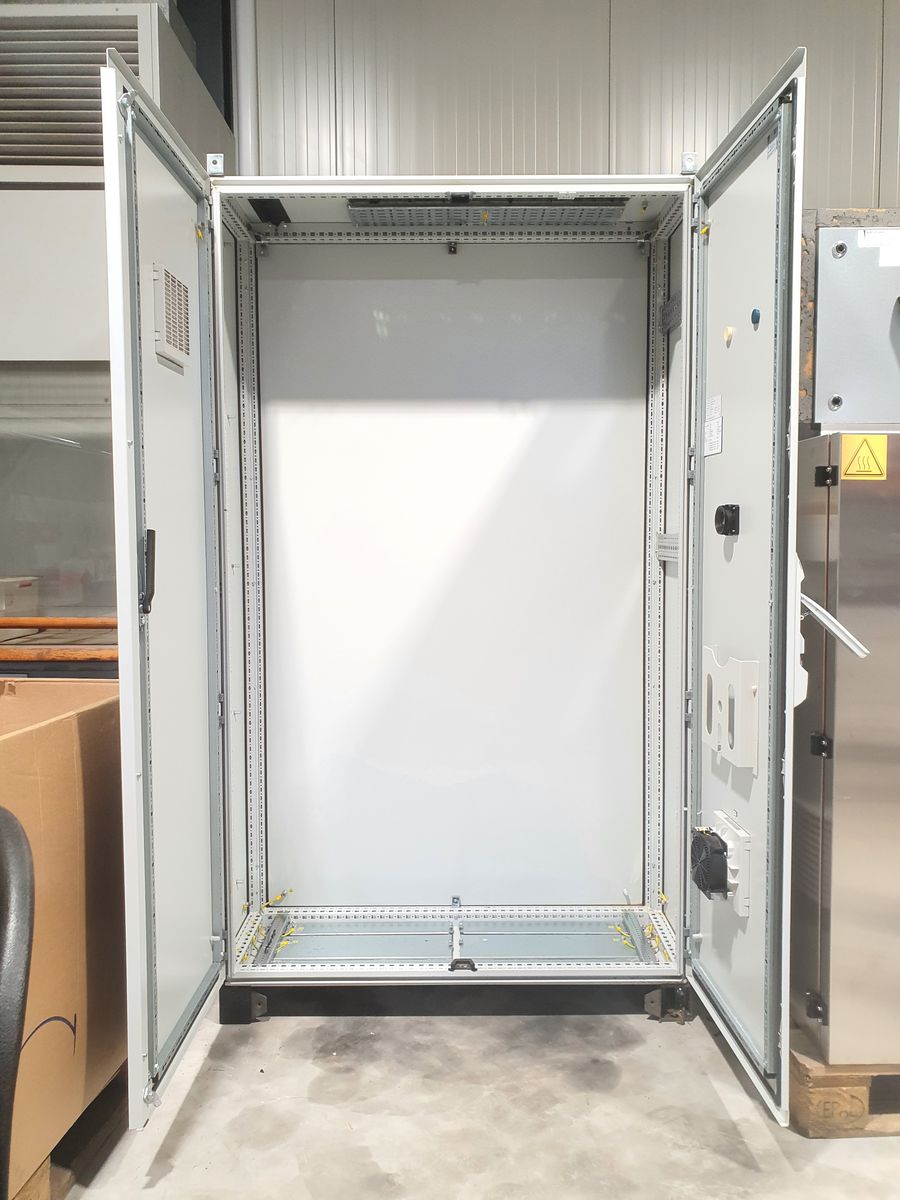

RITTAL TS 8204.500
SKU: 7035
Skladem
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

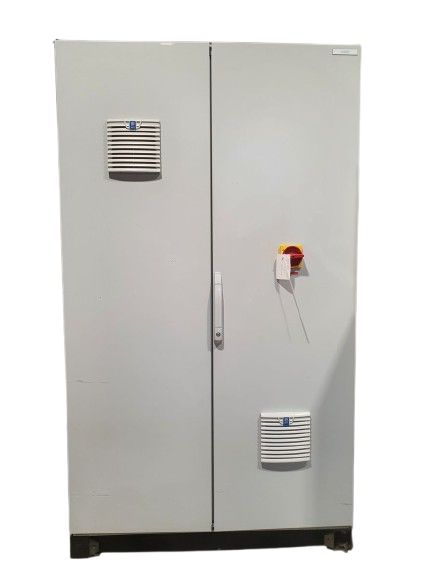

RITTAL TS 8204.500 - 4-1001007058
Specifications
| Specification | Value |
|---|---|
| TS | 8204500 |
| Material | Cabinet frame: sheet steel, 1.5 mm Roof: sheet steel, 1.5 mm Door: sheet steel, 2.0 mm Back panel: sheet steel, 1.5 mm Base plate: sheet steel, 1.5 mm Mounting plate: sheet steel, 3.0 mm |
| Surface | Housing frame: dip-primed Roof and door rear wall: dip-primed, powder-coated on the outside, textured paint Mounting plate and base plate: galvanized |
| Colour | RAL 7035 |
| Delivery | Cabinet frame Door(s) For cabinets with one door, opening direction right, can be changed to left Roof plate Back wall 4 lifting eyes Lock: 3 mm double-bit Base plates Mounting plate TS mounting rails 18 x 38 mm |
| Dimensions | Width: 1,200 mm Height: 2,000 mm Depth: 400 mm Mounting plate dimensions (W x H): 1,099 mm x 1,896 mm |
| Protection class IP according to EN 60 529 | IP 55 |
| Protection class NEMA | NEMA 1 NEMA 12 |
| Type approval according to UL 50E | Type 1 Type 12 |
| IK code | IK09 |
| Number of doors | 2 |
| Basic material | Sheet steel |
| Unit of delivery | 1 pc. |
| Net weight | 175.275 kg |
| Gross weight | 184.5 kg |
×
![]()
