Siemens Micromaster 440 6SE440-2AB13-7AA1
SKU: 7007
Skladem
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Siemens MICROMASTER 440

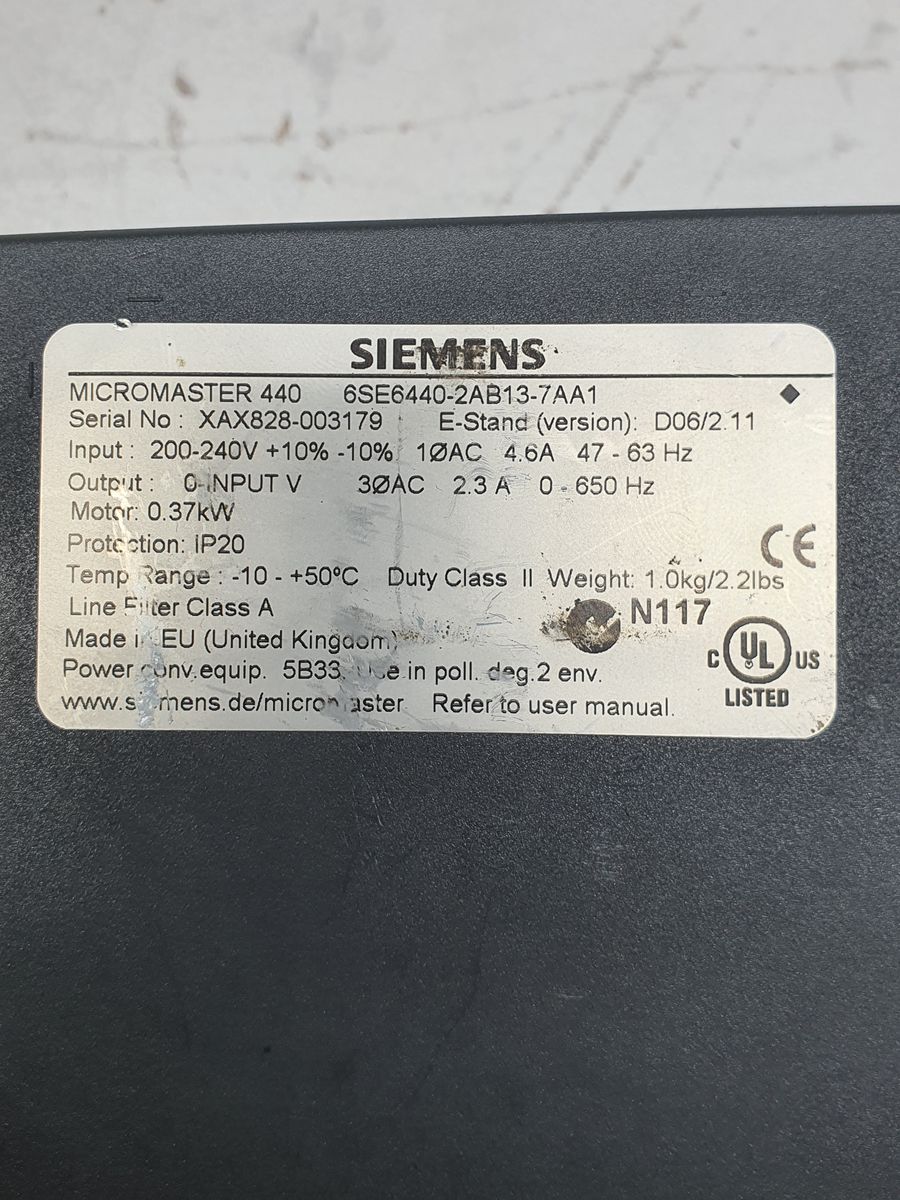

Specification
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | MICROMASTER 440 |
| Model Number | 6SE6440-2AB13-7AA1 |
| Serial Number | XAX828-003179 |
| Software / E-Stand Version | D06 / 2.11 |
| Input Voltage | 200–240 VAC |
| Input Voltage Tolerance | +10% / −10% |
| Input Phase | 1 Phase AC |
| Input Current | 4.6 A |
| Input Frequency | 47–63 Hz |
| Output Voltage | 0–Input Voltage |
| Output Phase | 3 Phase AC |
| Output Current | 2.3 A |
| Output Frequency | 0–650 Hz |
| Motor Power Rating | 0.37 kW |
| Protection Class | IP20 |
| Duty Class | Class II |
| Ambient Temperature Range | −10 °C to +50 °C |
| Line Filter Class | Class A |
| Weight | 1.0 kg (2.2 lbs) |
| Power Conversion Equipment | 5B33 |
| Pollution Degree | Degree 2 |
| Enclosure / Environment | Industrial |
| Country of Manufacture | United Kingdom (EU) |
| Compliance Marks | CE, cULus Listed (N117) |
| Documentation | Refer to User Manual |
×
![]()
