Měřicí ventily

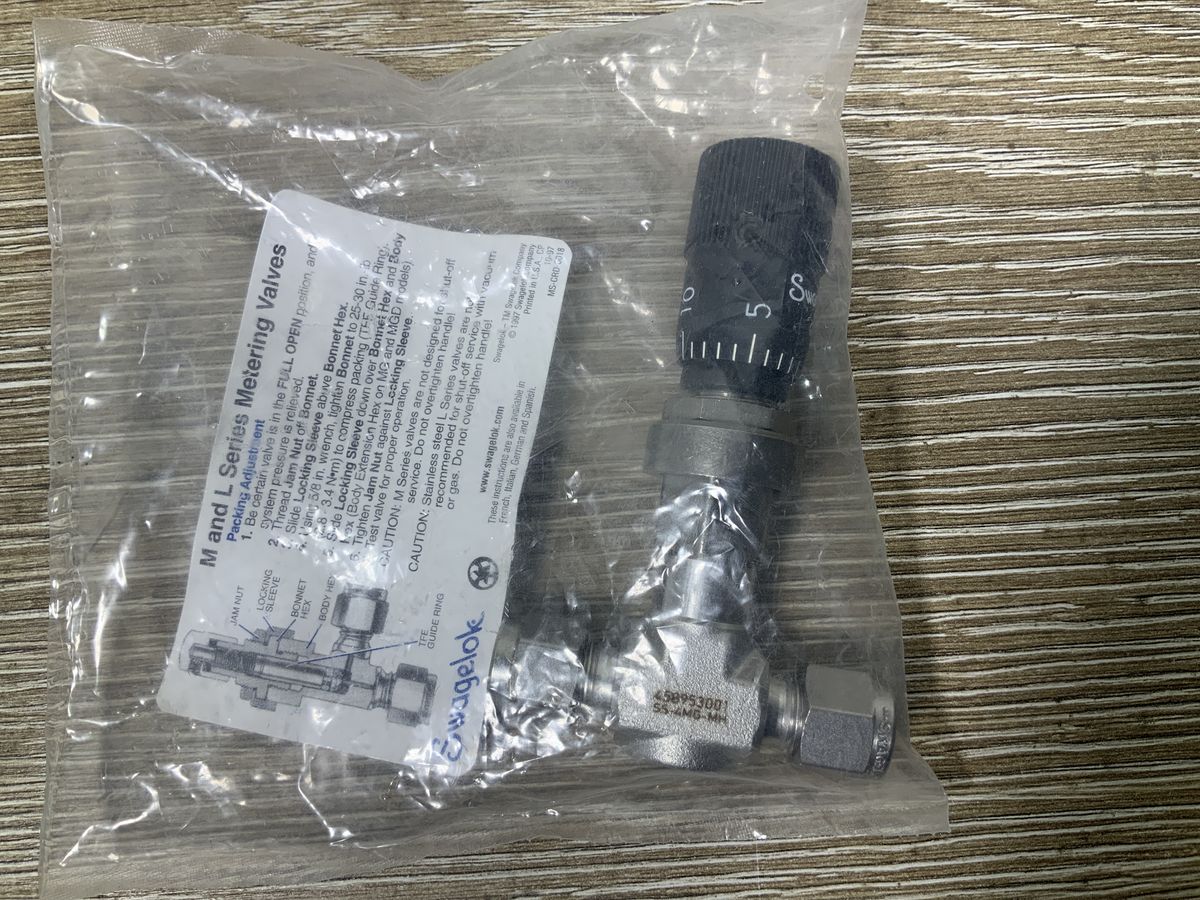

Swagelok SS-4MG-MH
SKU: 69001
Skladem
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.
The Swagelok SS-4MG-MH is a 316 stainless steel M-series medium-flow metering valve designed for precise flow control in analytical, research, and industrial fluid systems. It features 1/4 in. Swagelok tube fitting connections and a vernier handle for repeatable, fine flow adjustment with a maximum Cv of 0.03. The valve is rated for operating pressures up to 1000 psi (69 bar) and maximum temperatures up to 204°C (400°F).
Specifications – SS-4MG-MH
| Parameter | Specification |
|---|---|
| Body Material | 316 Stainless Steel |
| Connections | 1/4 in. Swagelok Tube Fitting |
| Handle Style | Vernier Handle |
| Flow Rating | Medium-Flow (Max Cv 0.03) |
| Pressure Rating | 1000 psi (69 bar) |
| Temperature Range | -23°C to 204°C (-10°F to 400°F) |
| Connection 1 Size | 1/4 in. (datasheet) |
| Connection 1 Type | Swagelok® Tube Fitting (datasheet) |
| Connection 2 Size | 1/4 in. (datasheet) |
| Connection 2 Type | Swagelok® Tube Fitting (datasheet) |
| Flow Pattern | Straight Pattern (datasheet) |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) (datasheet) |
| Working Pressure Rating | 1000 psig (68.9 bar) (datasheet) |
| Maximum Temperature | 400 °F (204 °C) (datasheet) |
| Minimum Temperature | -10 °F (-23 °C) (datasheet) |
| Maximum Flow Coefficient (Cv) | 0.03 (datasheet) |
| Orifice | 0.056 in. (1.42 mm) (datasheet) |
×
![]()
