Regulátory

Tescom 26-1560-24-008

SKU: 8006

Skladem

Použité
Získáno z pracovního prostředí

Bez DPH: €320,00 (1 dostupné)

včetně DPH: €387,20

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno DOA

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

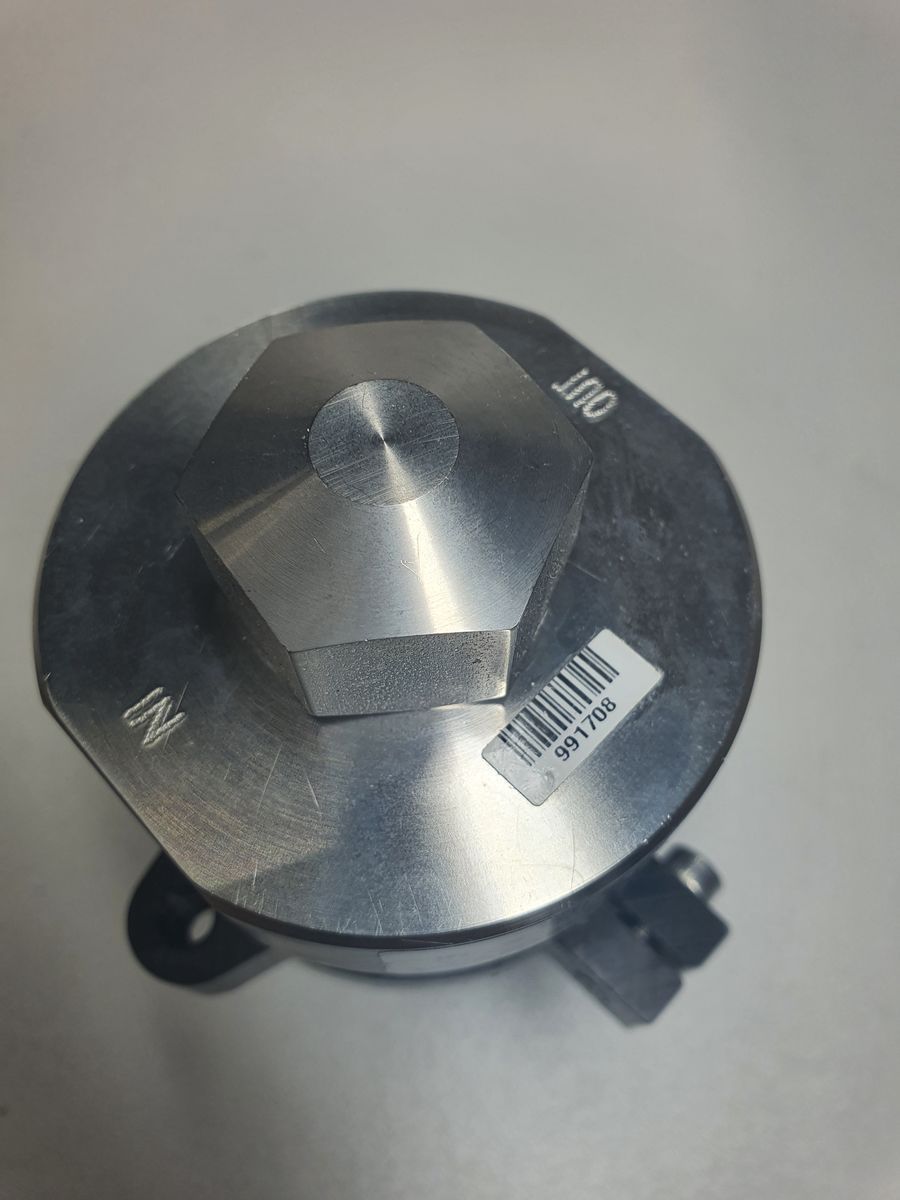

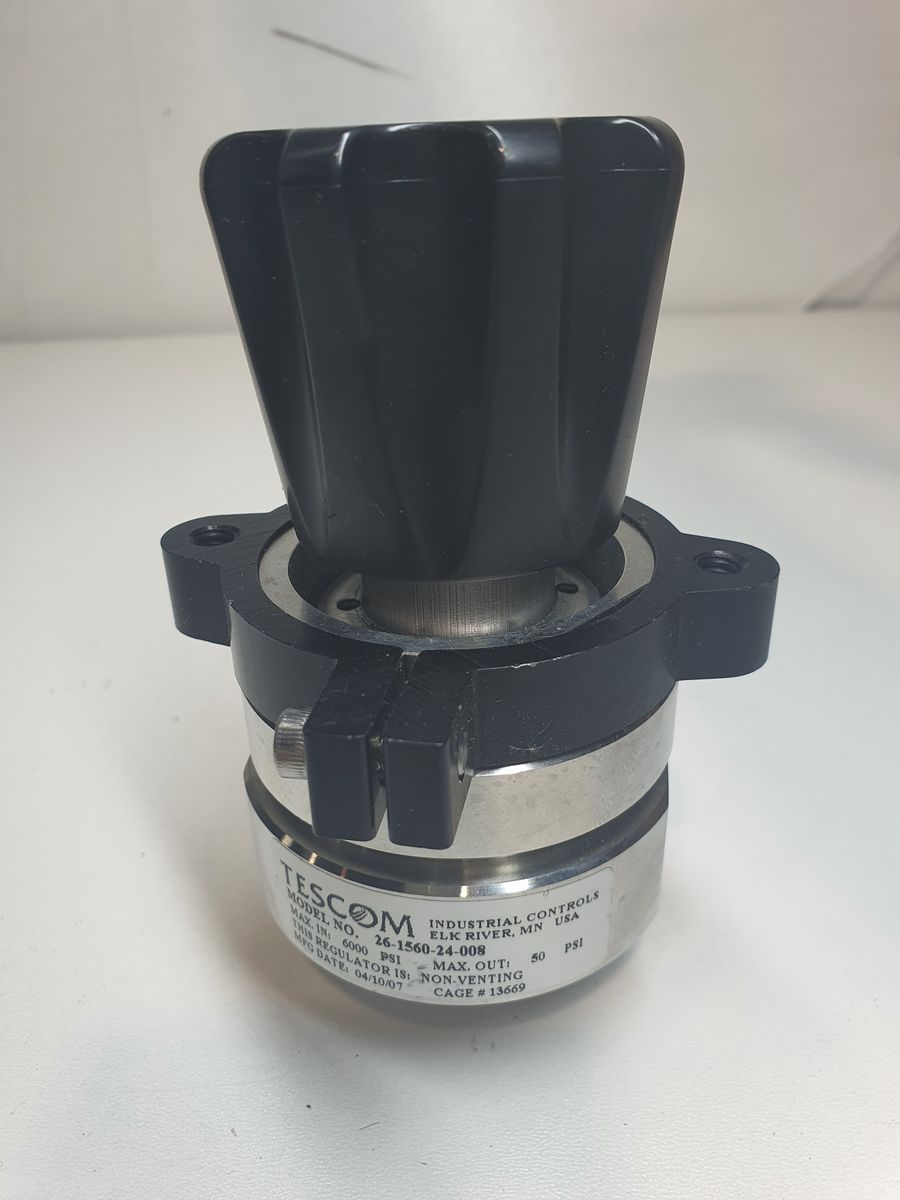

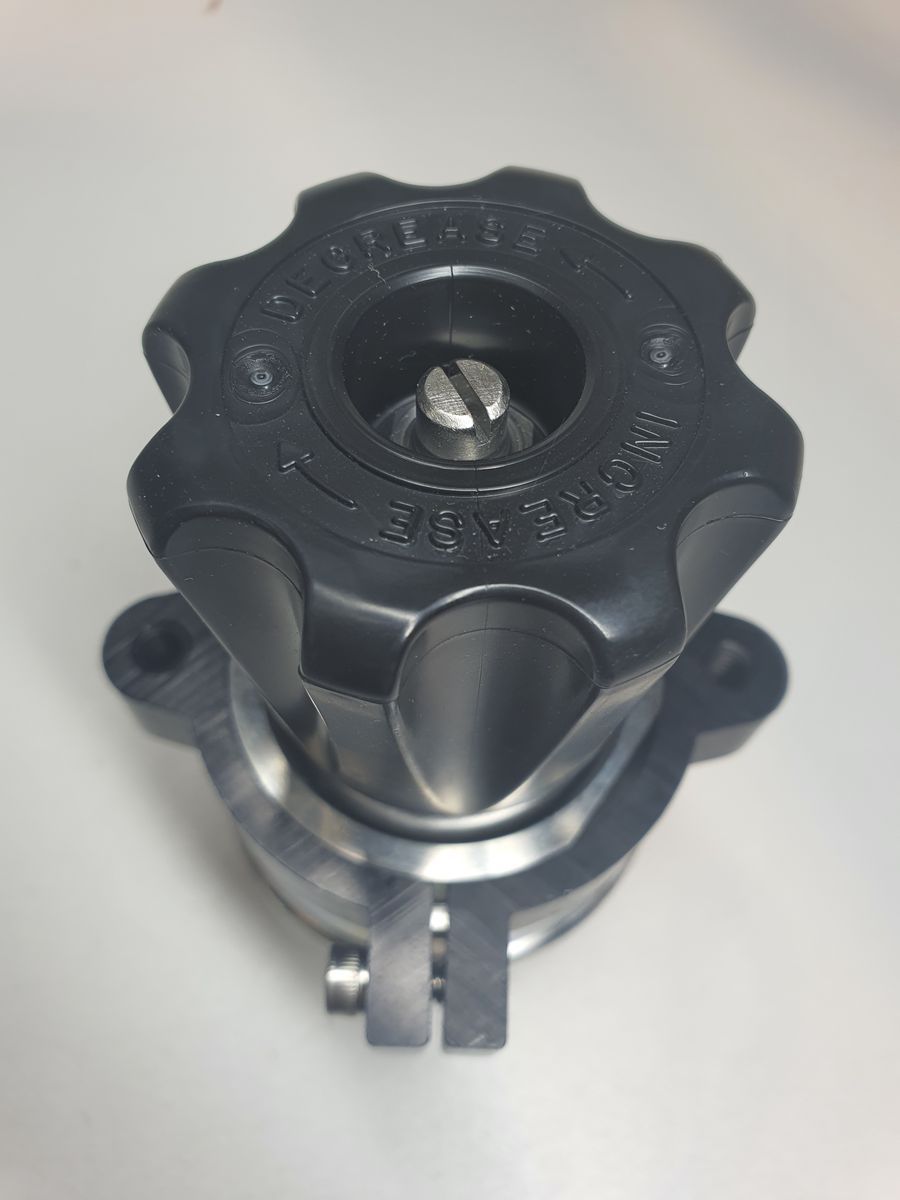

Tescom 26-1560-24-008 Drukreduceerregelaar

Category	Parameter
Regulator Type	Pressure-reducing regulator
Body Material	316 Stainless Steel
Bonnet / Cover Material	300-series stainless steel
Maximum Inlet Pressure	6000 psig (414 bar)
Outlet Pressure Range	0–50 psig (0–3.4 bar)
Design Pressure	150% of maximum rated pressure
Operating Temperature Range	−40 °F to +165 °F (−40 °C to +74 °C)
Port Size	1/4"
Port Type	NPTF
Typical Flow Coefficient (Cv)	0.08
Seat Material	CTFE
O-Ring / Diaphragm Material	Buna-N
Filter	40 µm stainless steel
Leakage	Bubble-tight (zero leakage)
Configuration Suffix	“008” (factory option, typically related to gauge attachment)
