LIQUIFLO H3FX6PEE300E06US
SKU: 7010
Skladem
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

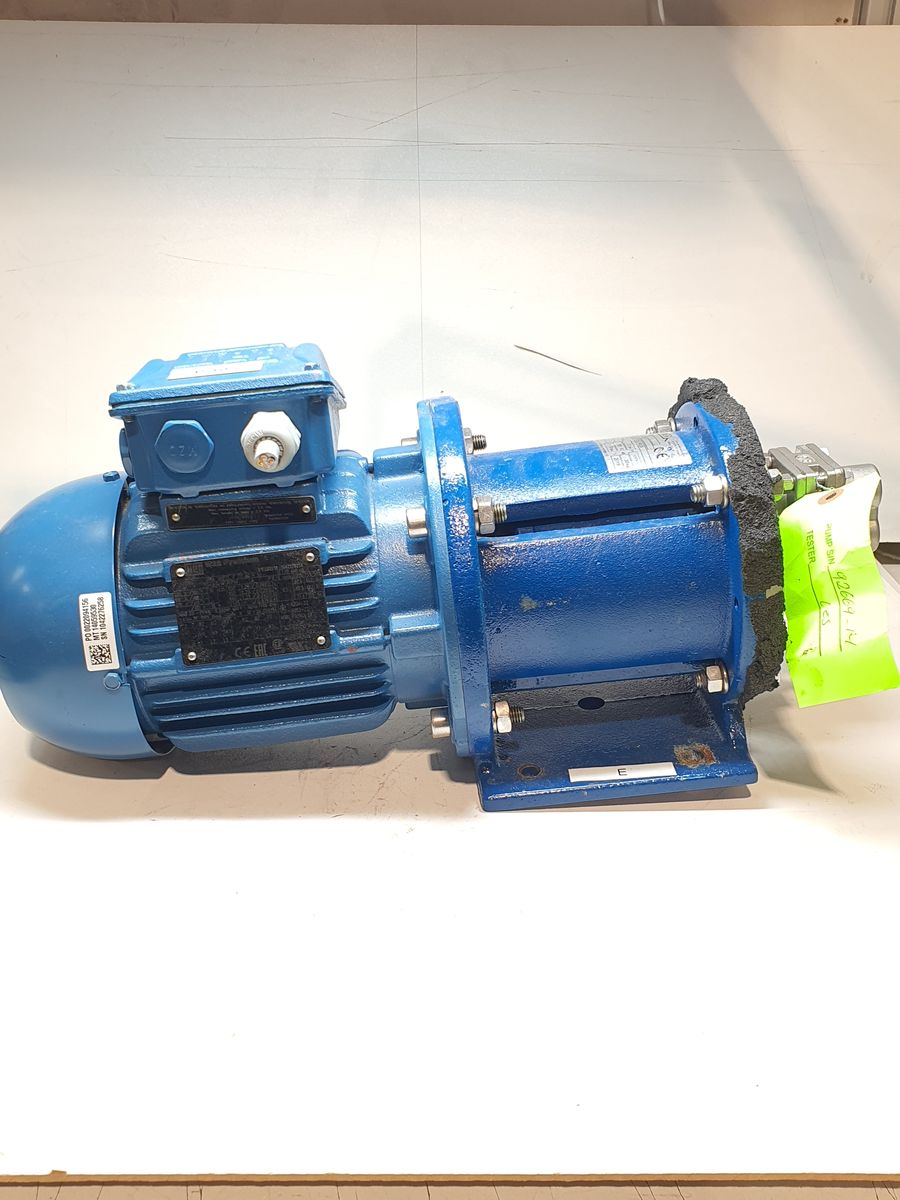

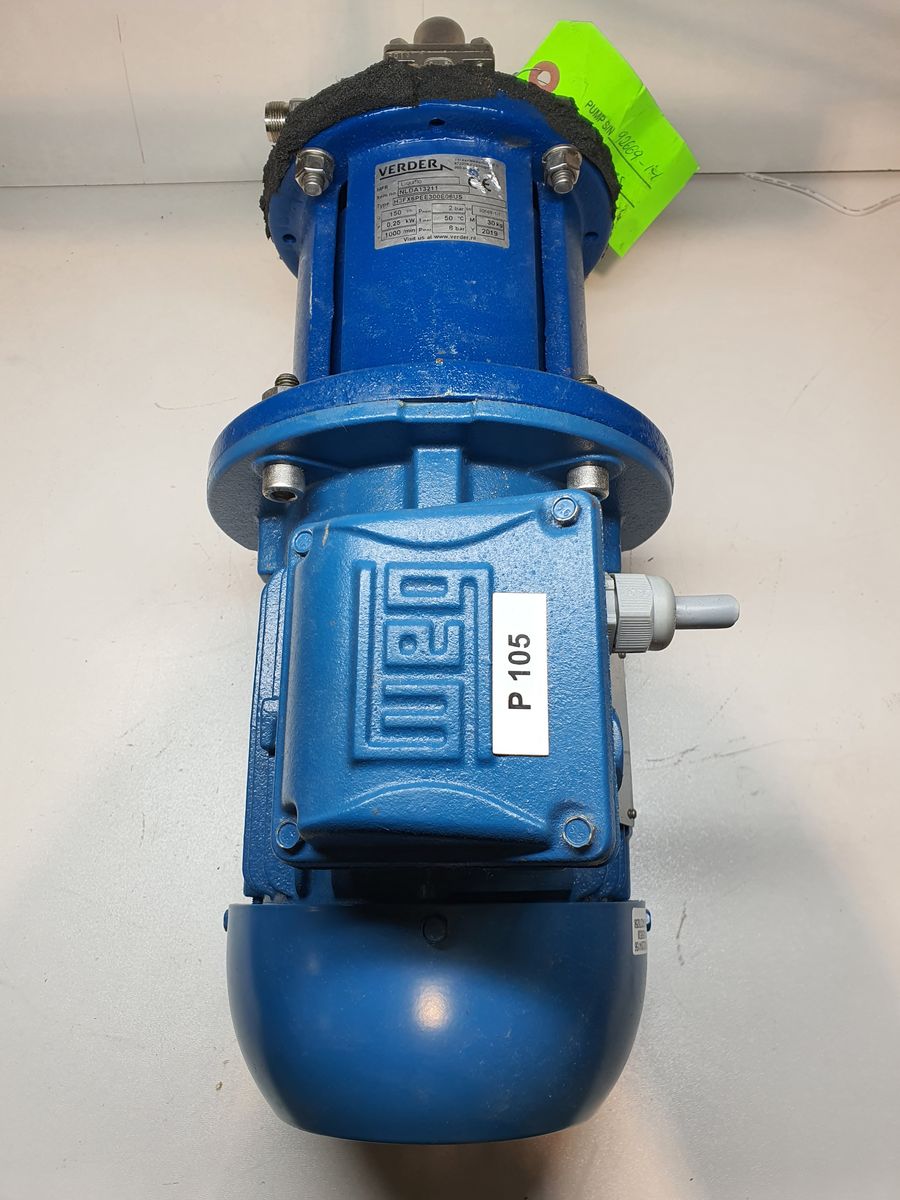

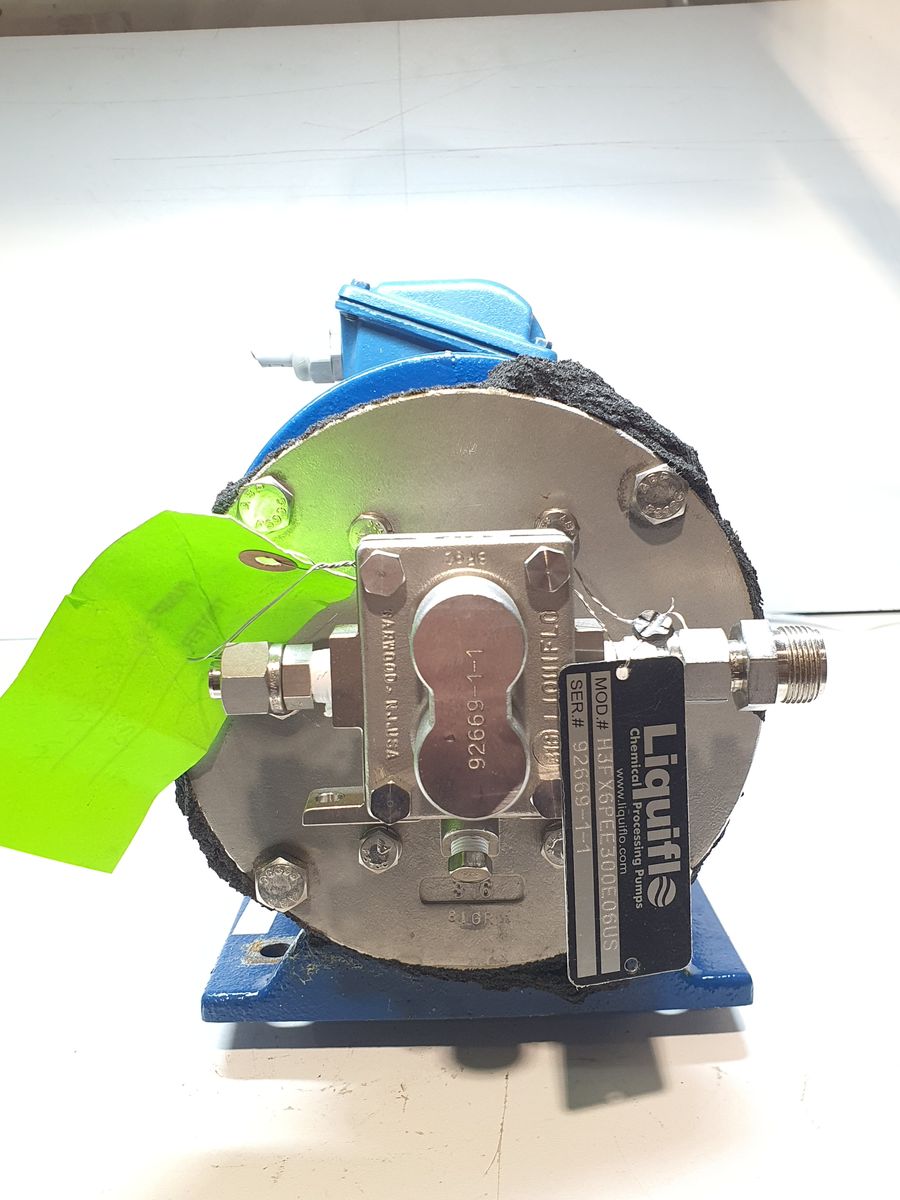

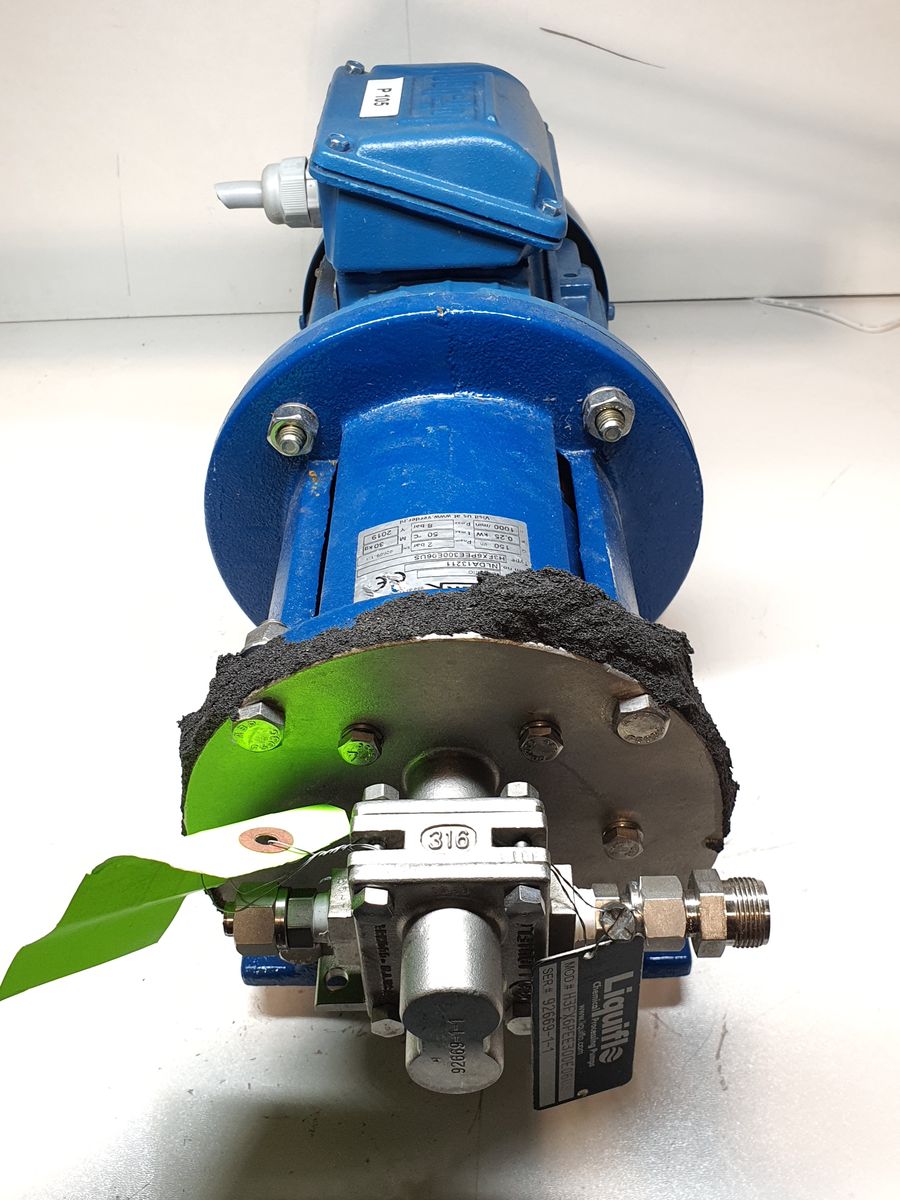

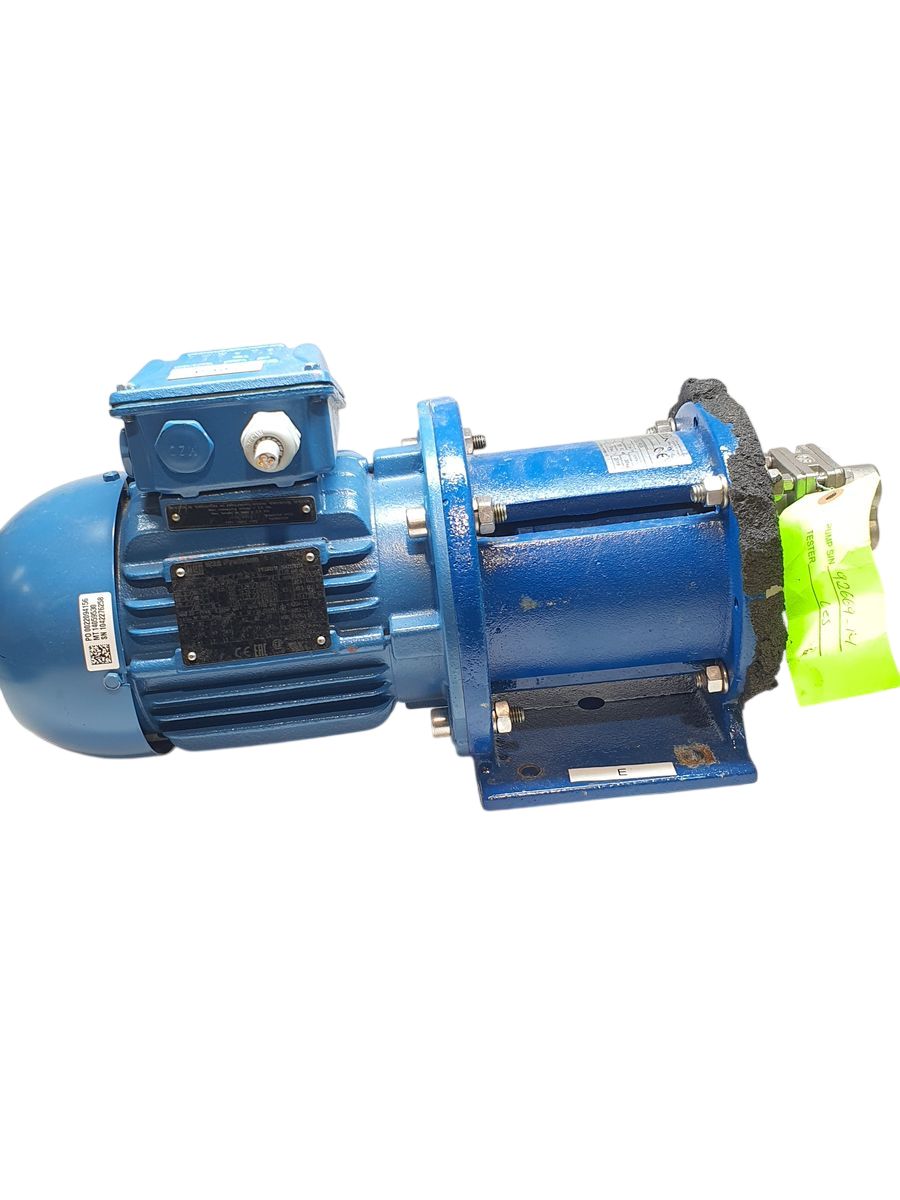

Liquiflo H3FX6PEE300E06US Gear Pump with WEG Motor
| Category | Parameter | Specification |
|---|---|---|
| Pump | Manufacturer | Liquiflo Equipment Company |

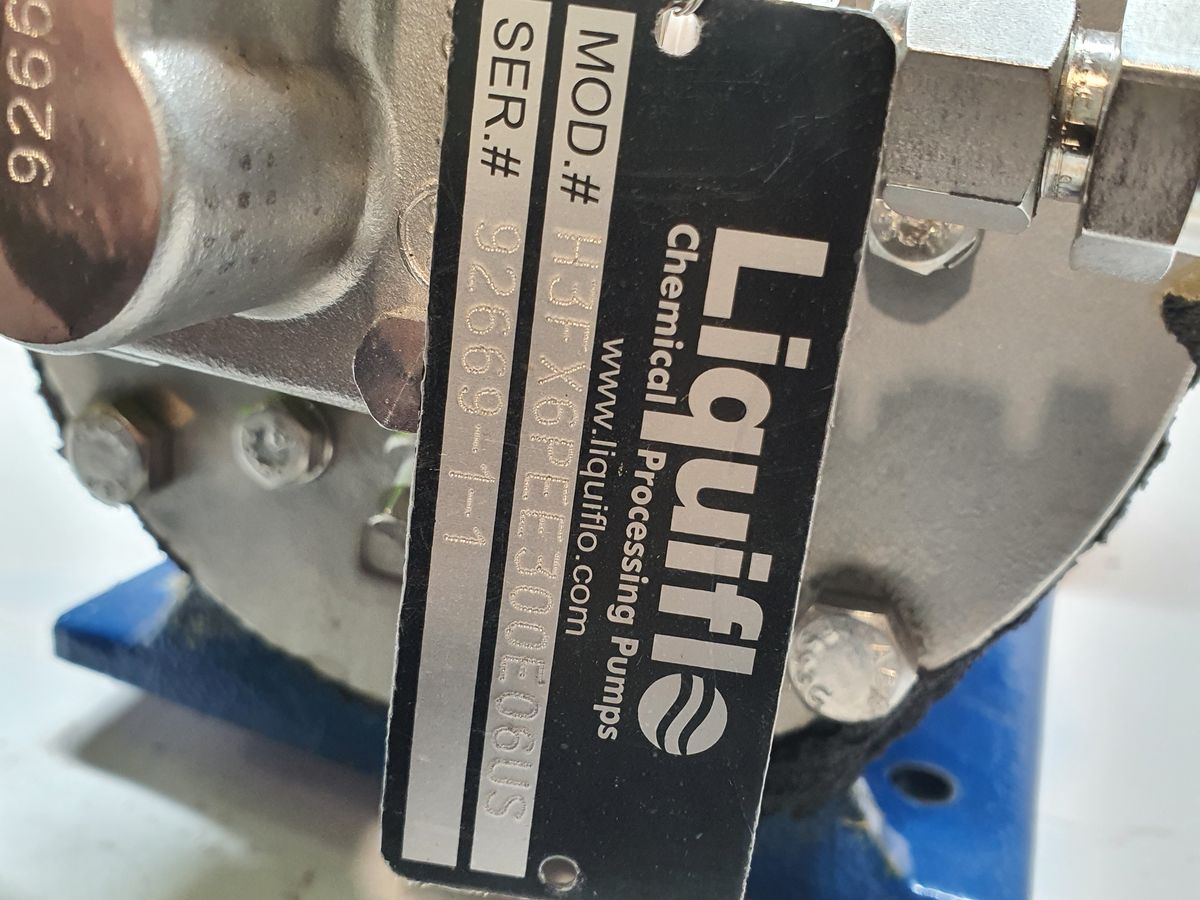

| Model | H3FX6PEE300E06US | |
| Pump Type | External Gear Pump | |
| Flow Rate (Q) | 150 L/h | |
| Nominal Pressure (Pnom) | 2 bar | |
| Maximum Pressure (Pmax) | 8 bar | |
| Rated Speed (N) | 1000 rpm | |
| Rated Power | 0.25 kW | |
| Maximum Fluid Temperature (Tmax) | 50 °C | |
| Year of Manufacture | 2019 | |

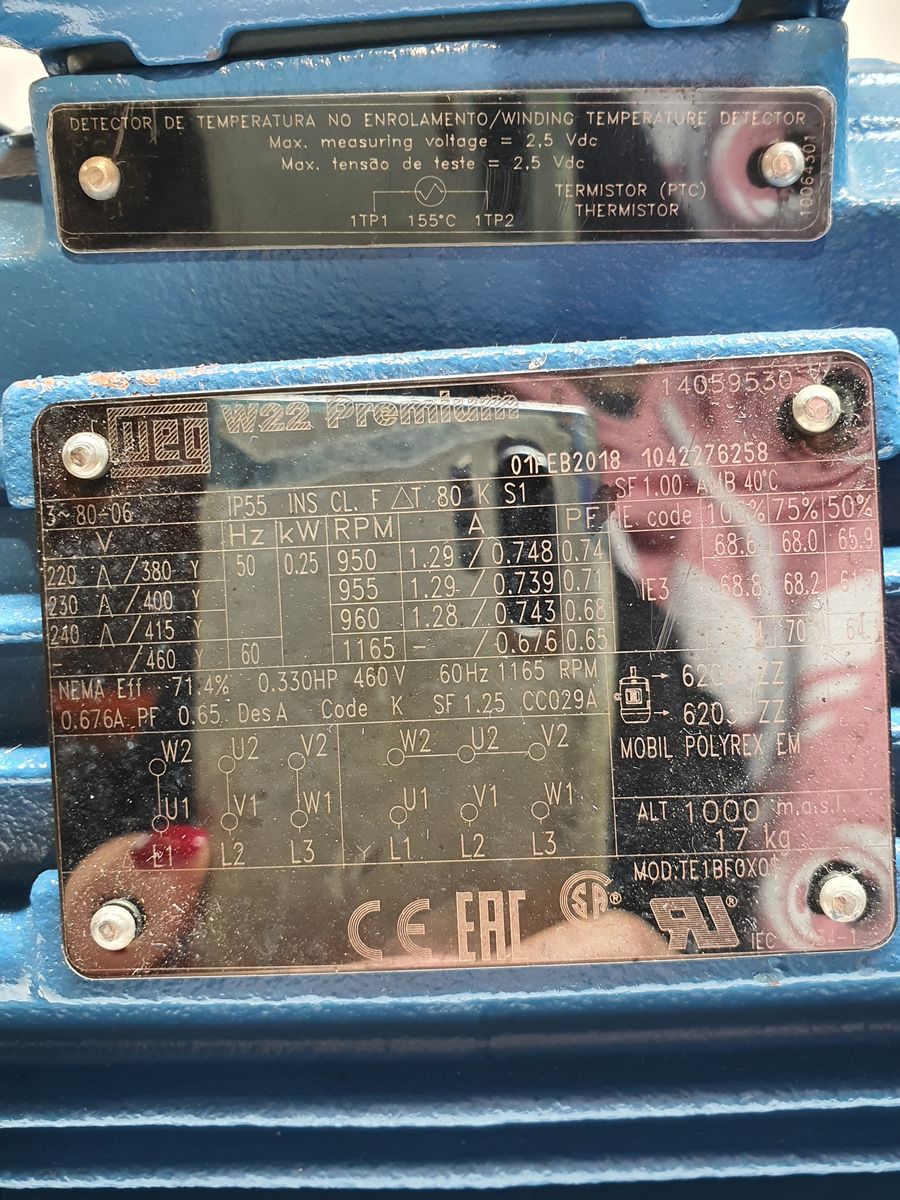

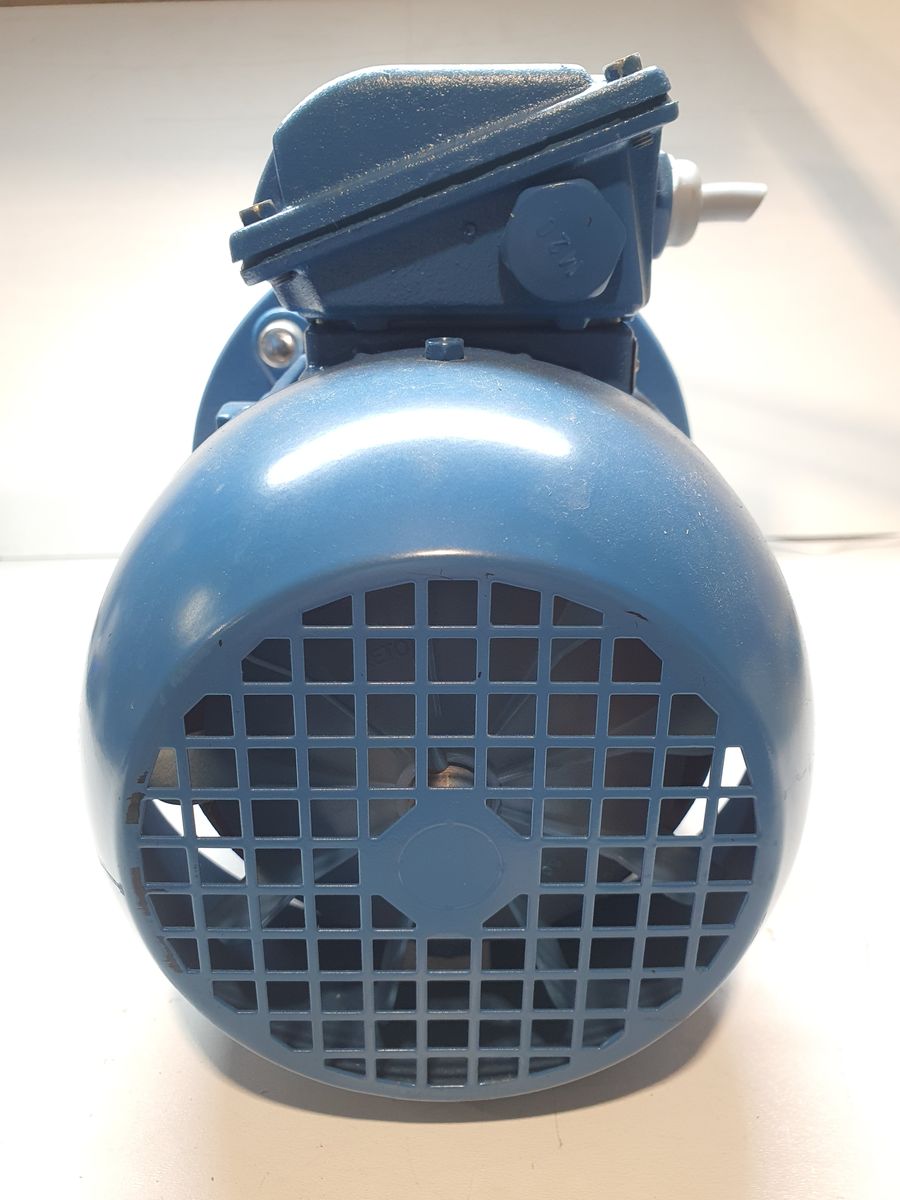

| Motor | Manufacturer | WEG |
| Series | W22 Premium | |
| Motor Type | 3-Phase Induction Motor | |
| Protection Class | IP55 | |
| Insulation Class | F | |
| Duty Type | S1 (Continuous) | |
| Thermal Protection | PTC Thermistor (155 °C) | |
| Rated Power | 0.25 kW (0.33 HP) | |
| Frequency | 50 / 60 Hz | |
| Speed | 950–960 rpm (50 Hz) / 1165 rpm (60 Hz) | |
| Voltage (50 Hz) | 220–240 V Δ / 380–415 V Y | |
| Voltage (60 Hz) | 460 V Y | |
| Rated Current | ~1.29 A (Δ) / ~0.74 A (Y) | |
| Power Factor (PF) | 0.65–0.74 | |
| Efficiency Class | IE3 | |
| Service Factor | 1.00 (50 Hz) / 1.25 (60 Hz) | |
| Ambient Temperature | 40 °C | |
| Altitude | ≤ 1000 m | |
| Assembly | Mounting | Foot-mounted |
| Coupling | Direct-coupled | |
| Total Weight | 30 kg | |
| Compliance | CE, IEC, EAC, UL |
×
![]()
