AS-Interface Moduly

Pepperl+Fuchs VAA-4EA-KF2-ZE/E2

SKU: 42001

Skladem

Vyberte stav

New

Bez DPH: €60,00 (1 dostupné)

včetně DPH: €72,60

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informace o záruce

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 6 měsíce

Použité 3 měsíce

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

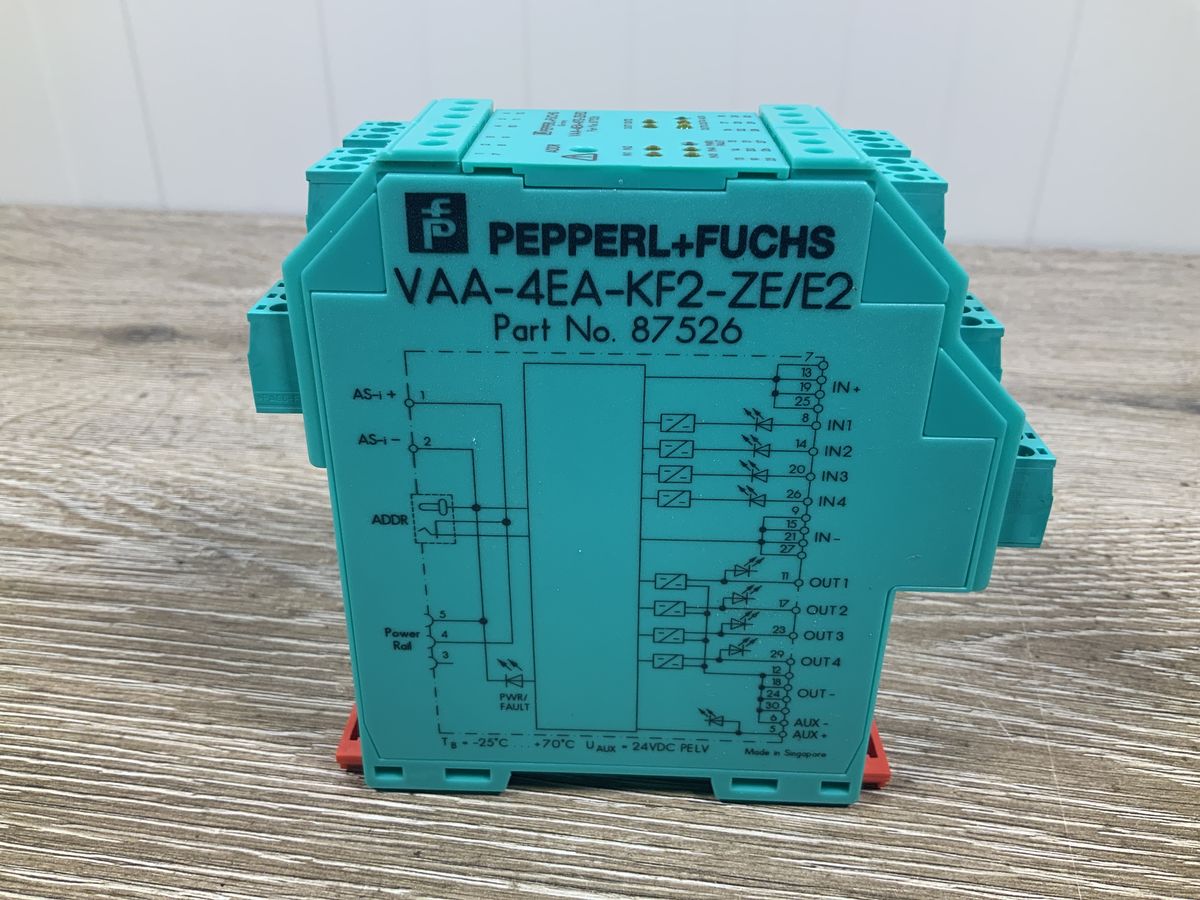

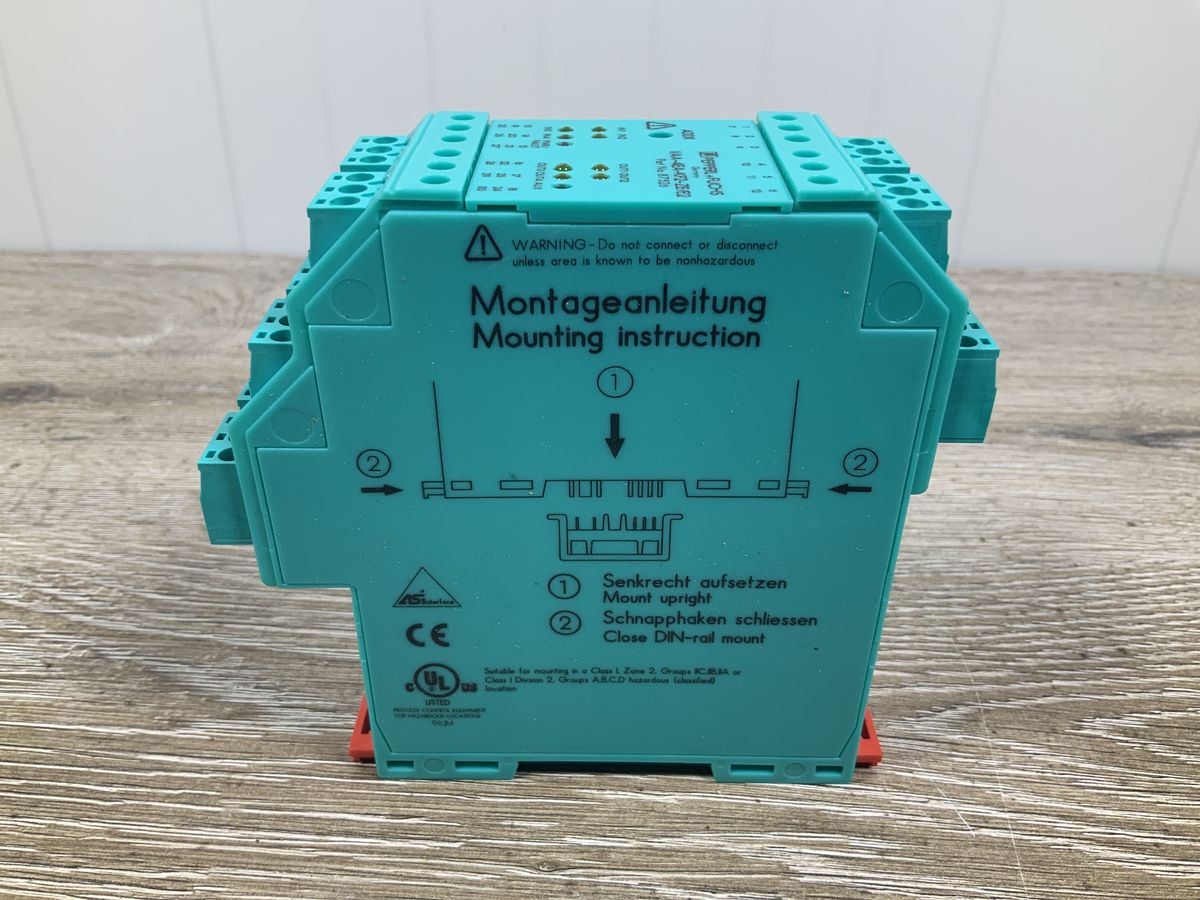

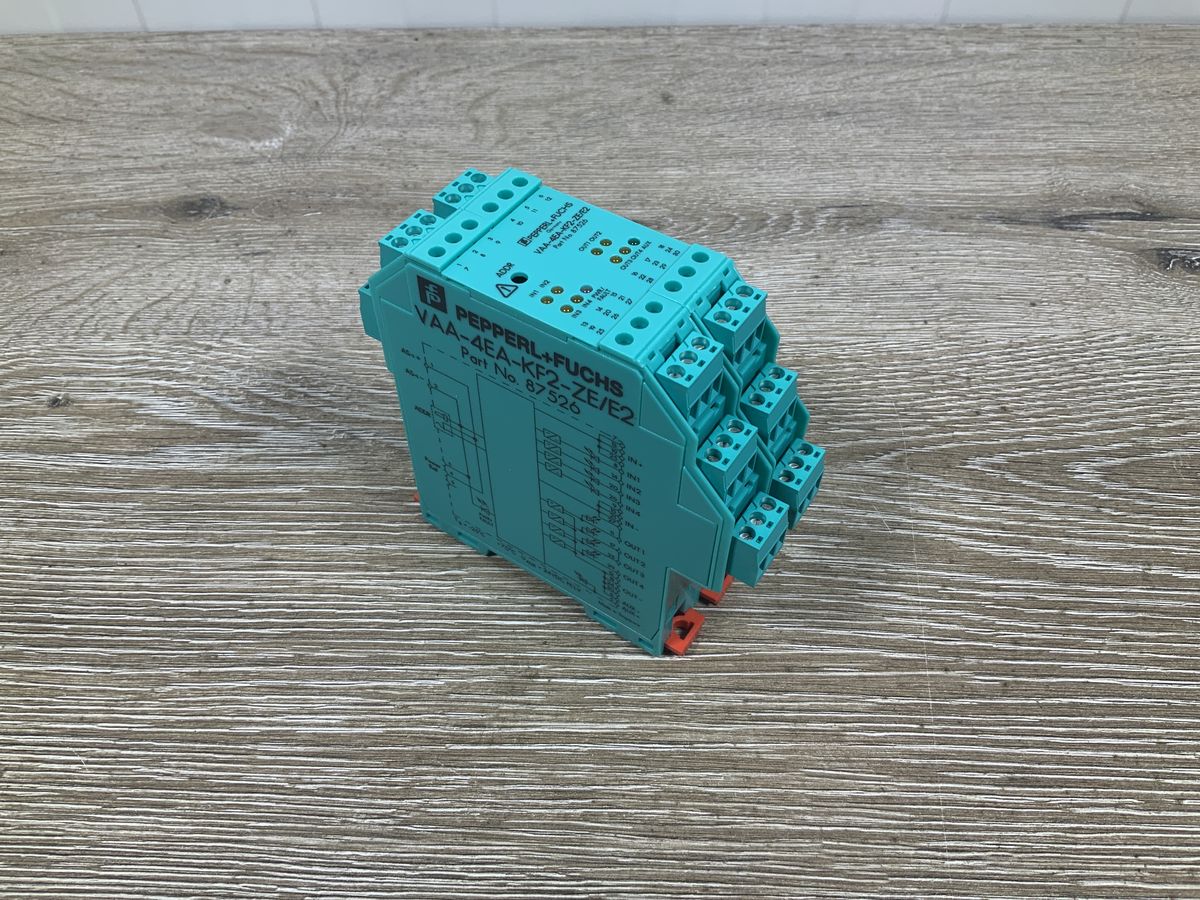

The Pepperl+Fuchs VAA-4EA-KF2-ZE/E2 (Part No. 87526) is an AS-Interface coupling module designed for cabinet and DIN-rail mounting in industrial automation systems. It provides 4 PNP inputs and 4 electronic outputs to connect field sensors and actuators into an AS-i network. The module operates with a 24 V DC auxiliary voltage supply and features coded removable terminal blocks and LED status indicators.

Specifications – VAA-4EA-KF2-ZE/E2

Parameter	Specification
Part Number	87526
Inputs	4 (PNP)
Outputs	4
Auxiliary Voltage (U_AUX)	24 V DC PELV
Ambient Temperature Range	-25°C to +70°C
Mounting Type	DIN rail
